MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

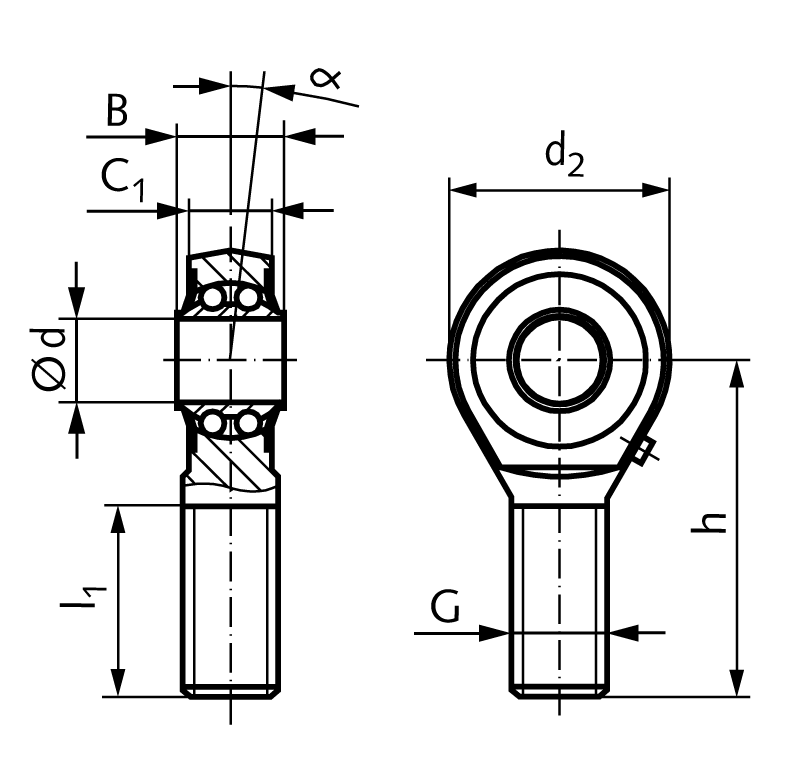

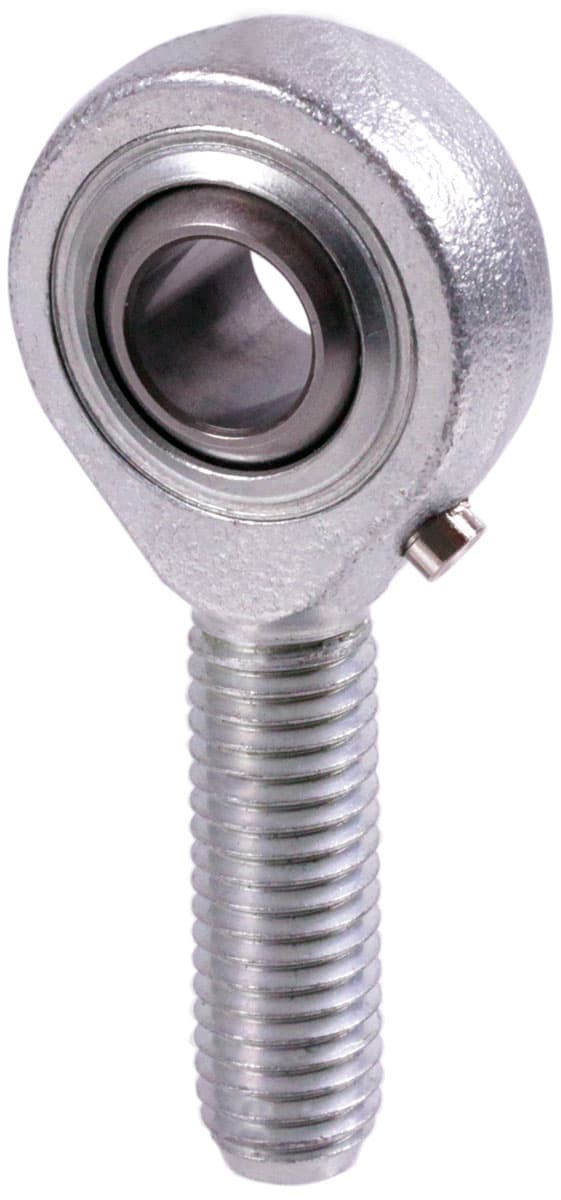

Rod end BR DIN ISO 12240-4 series K external tread M20x1.5 right with spherical ball bearing
Manufacturer part no. 63252000
$138.50≈ 120.28 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €120.28 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.06 |
| Total delivered | €162.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 303 g |
Other characteristics
| Bore | 20 mm |
| Calculation factor | 2.46 |
| Center distance to mounting surface | 78 mm |
| Load rating dyn | 7.9 kN |
| Outer diameter | 50 mm |
| Static load rating | 3.5 kN |
| Thread pitch | 1.5 mm |
| Tilt angel | 7 ° |
| Material | Steel |
| Max speed | 825 min-1 |
| Surface | Zinc-plated |
| Thread size | M 20×1.5 mm |
| Thread type | right |
Description
Material: Outer part: Alloyed steel, forged, quenched and tempered. Bearing race hardened, ground and lapped. Thread rolled., Surface zinc-plated and chromatised. Inner ring: Roller bearing steel, hardened, ground and polished. Lubrication: Aluminium-complex-soap-grease, approval according to NSF H1, -45ºC to +120ºC. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rod ends with roller bearing. very light running (basically without friction). Long-term lubricated and sealed with cover plates. For high loads.
