MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

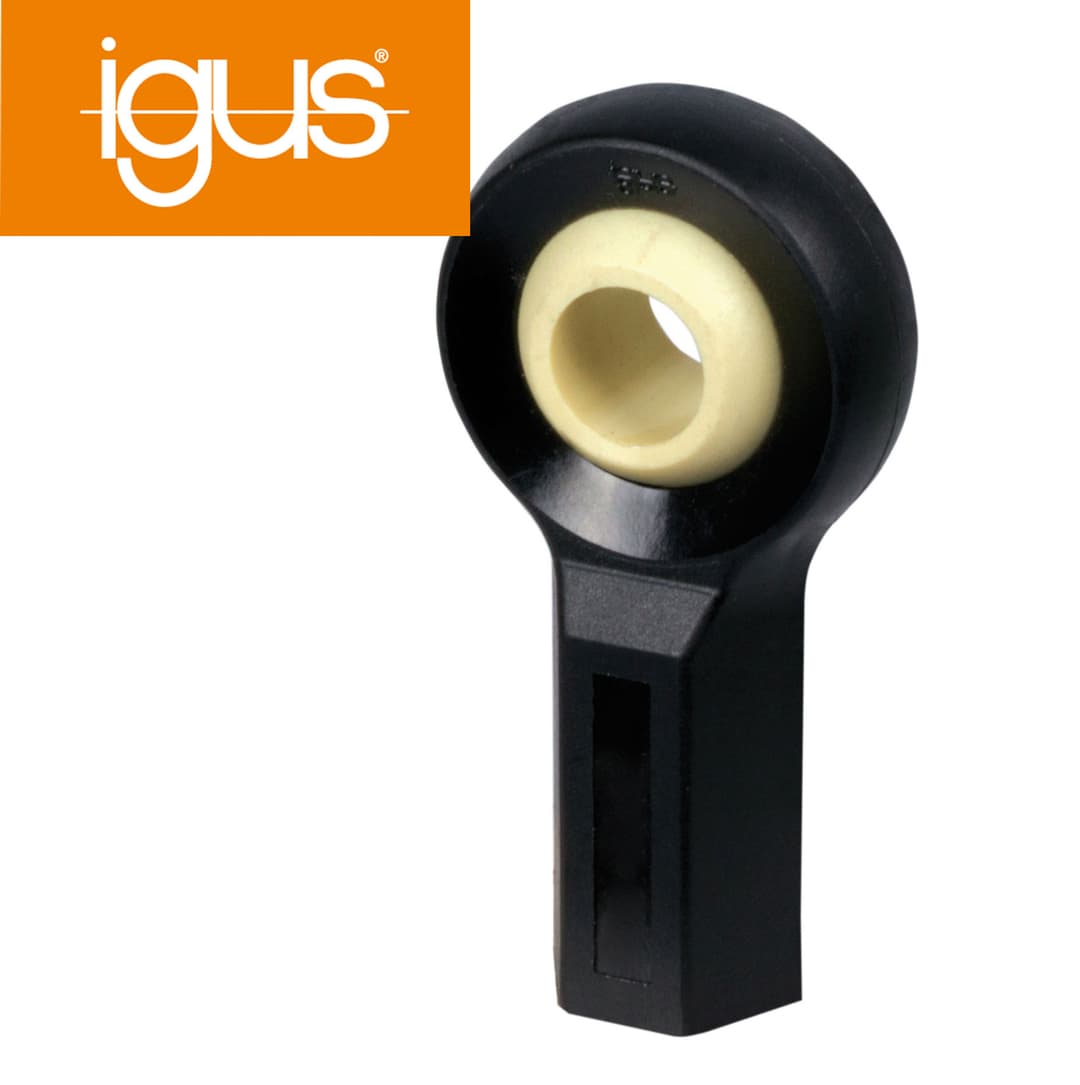

Rod end igus igubal KCRM-16-F internal fine thread M16x1.5 right
Manufacturer part no. 63255616F
$19.15≈ 16.63 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €16.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.33 |
| Total delivered | €37.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

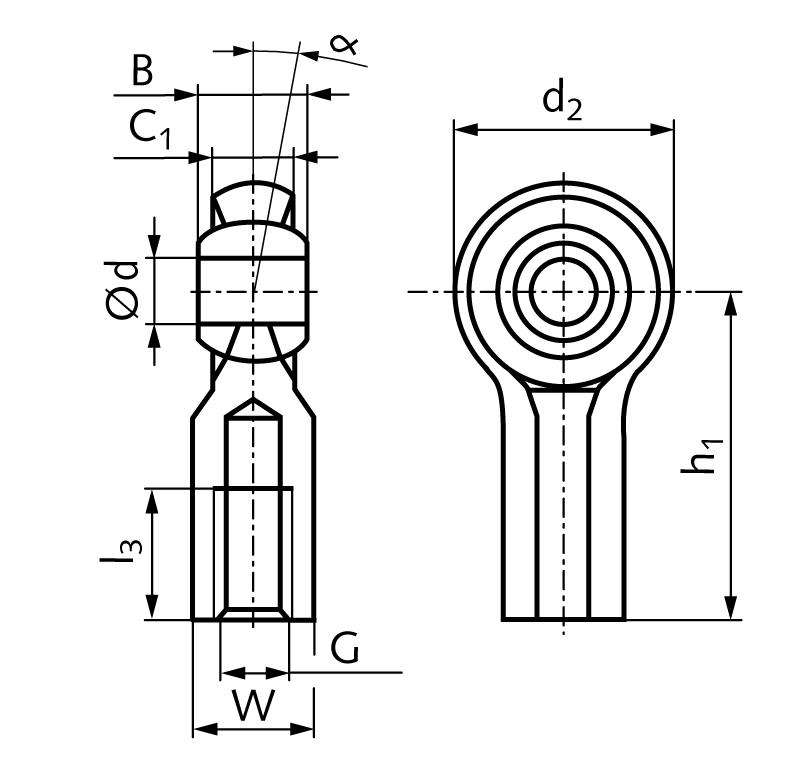

Specifications (automatically extracted)
Mechanical
| Weight | 34 g |
Other characteristics
| Bore | 16 mm |
| Center distance to mounting surface | 64 mm |
| Load rating axial static | 400 N |
| Load rating radial static | 1 900 N |
| Outer diameter | 42 mm |
| Tilt angel | 35 ° |
| Material | Plastic |
| Surface | Blank |
| Thread size | M 16×1.5 mm |
| Thread type | right |
Description
Material spherical ball: iglidur® W300, yellowish. Material housing: igumid® G, black. Maintenance-free, silent running and anti-vibrating. High strength at very low weight. Resistant against corrosion and many chemicals. Electrical and thermal isolating. The counter part must rotate inside the bore of the spherical ball. With a metal bolt, a sliding speed up to 30 m/min. may be possible. The spherical ball may only compensate shaft misalignement. Temperature range: -30º to +80ºC.
