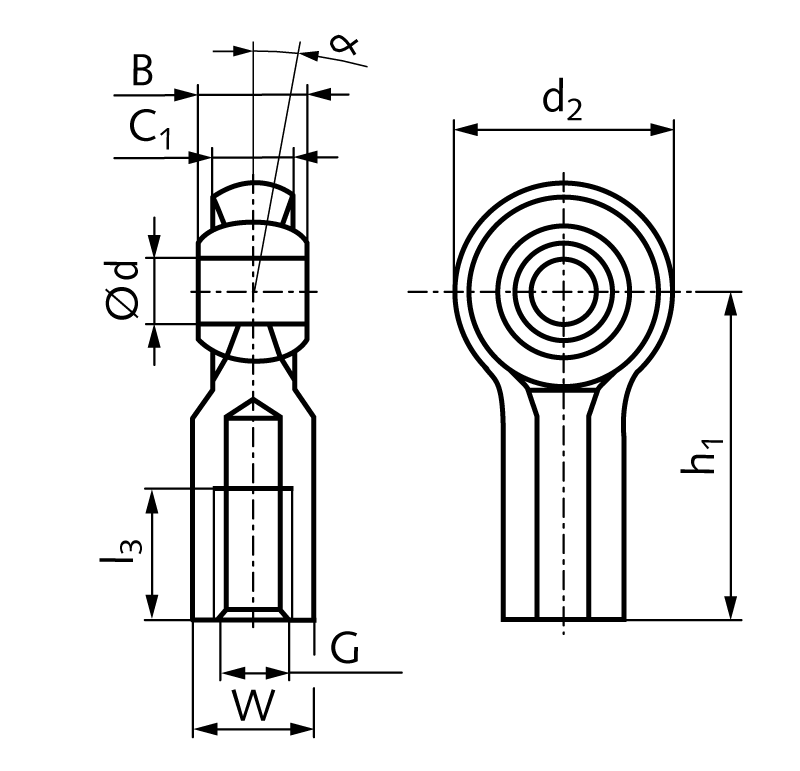

Rod end igus igubal KCLM-05 internal thread M5 left
Manufacturer part no. 63255705
$10.44≈ 9.07 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €9.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.81 |
| Total delivered | €28.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4 g |
Other characteristics
| Bore | 5 mm |
| Center distance to mounting surface | 27 mm |
| Load rating axial static | 90 N |
| Load rating radial static | 600 N |
| Outer diameter | 18 mm |
| Tilt angel | 43 ° |
| Material | Plastic |
| Surface | Blank |
| Thread size | M 5 mm |
| Thread type | left |
Description
Material spherical ball: iglidur® W300, yellowish. Material housing: igumid® G, black. Maintenance-free, silent running and anti-vibrating. High strength at very low weight. Resistant against corrosion and many chemicals. Electrical and thermal isolating. The counter part must rotate inside the bore of the spherical ball. With a metal bolt, a sliding speed up to 30 m/min. may be possible. The spherical ball may only compensate shaft misalignement. Temperature range: -30º to +80ºC.
