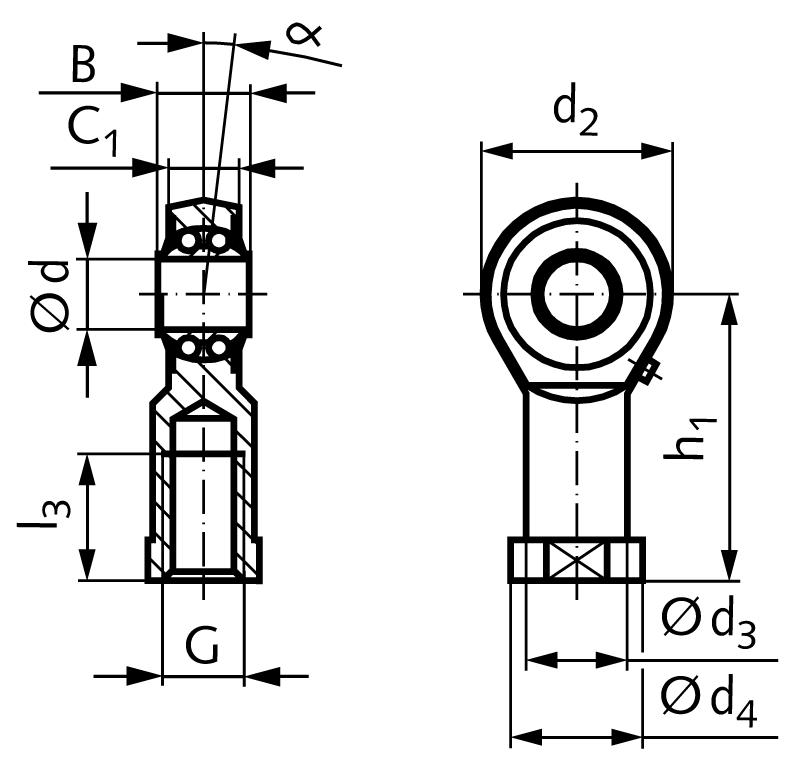

Rod end BR-R DIN 12240-4 series K internal tread M12 right with spherical ball bearing stainless
Manufacturer part no. 63299412
$138.87≈ 120.60 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €120.60 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.12 |
| Total delivered | €162.72 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 107 g |
Other characteristics
| Bore | 12 mm |
| Calculation factor | 1.74 |
| Center distance to mounting surface | 50 mm |
| Load rating dyn | 3.5 kN |
| Outer diameter | 32 mm |
| Static load rating | 1.3 kN |
| Thread pitch | 1.75 mm |
| Tilt angel | 7.5 ° |
| Material | Stainless steel |
| Max speed | 1125 min-1 |
| Surface | Superfinished |
| Thread size | M 12 mm |
| Thread type | right |
Description
Material: Outer part: Stainless steel, forged, hardened. Bearing race superfinished.Inner ring and rollers: Stainless steel, hardened, superfinished.Lubrication:Aluminium-complex-soap-grease,approval according to USDA H1, -45ºC to +120ºC.If required special lubricants.Wide version. Dimensions according to DIN 648 / 12240 series K. Thread either right-handed or left-handed. Heavy-duty rod ends with roller bearing. very light running (basically without friction). Long-term lubricated and sealed with cover plates. For high loads. Material: Outer part: Stainless steel, forged, hardened. Bearing race superfinished.Inner ring and rollers: Stainless steel, hardened, superfinished. Lubrication: Aluminium-complex-soap-grease,approval according to NSF H1, -45ºC to +120ºC.If required special lubricants. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rod ends with roller bearing. very light running (basically without friction). Long-term lubricated and sealed with cover plates. For high loads.
