MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

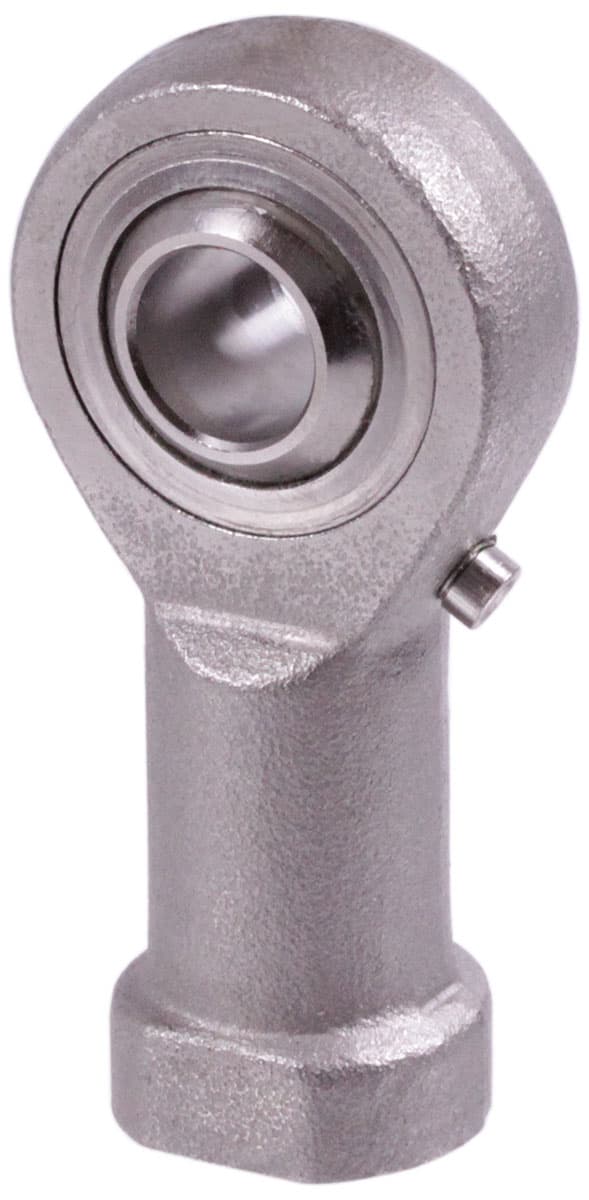

Rod end BR-R DIN 12240-4 series K internal tread M10 left with spherical ball bearing stainless
Manufacturer part no. 63299460
$118.72≈ 103.10 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €103.10 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.62 |
| Total delivered | €141.72 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

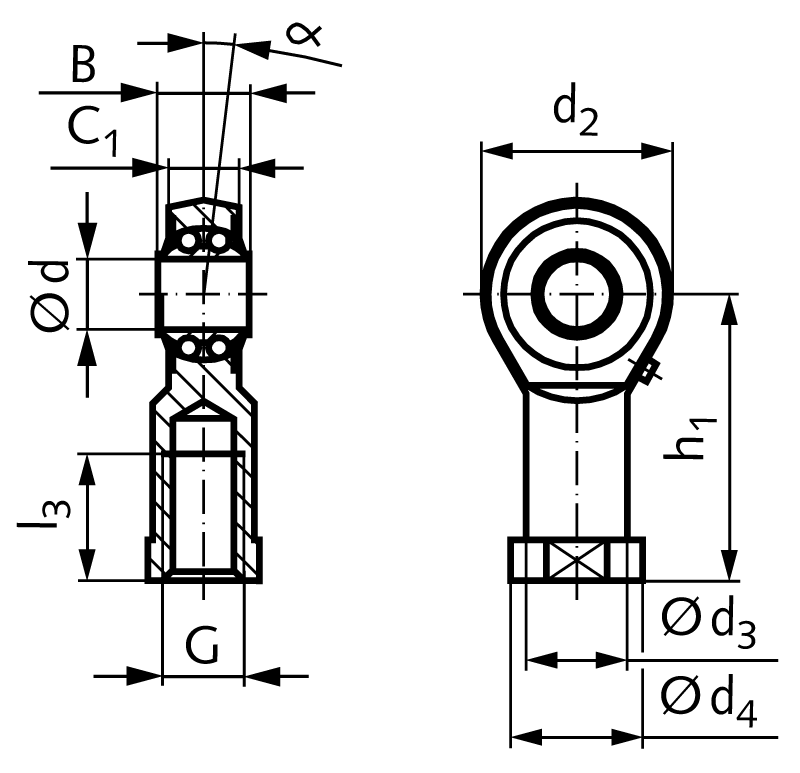

Specifications (automatically extracted)
Mechanical
| Weight | 72 g |
Other characteristics
| Bore | 10 mm |
| Calculation factor | 1.9 |
| Center distance to mounting surface | 43 mm |
| Load rating dyn | 3.1 kN |
| Outer diameter | 28 mm |
| Static load rating | 1 kN |
| Thread pitch | 1.5 mm |
| Tilt angel | 8 ° |
| Material | Stainless steel |
| Max speed | 1225 min-1 |
| Surface | Superfinished |
| Thread size | M 10 mm |
| Thread type | left |
Description
Material: Outer part: Stainless steel, forged, hardened. Bearing race superfinished.Inner ring and rollers: Stainless steel, hardened, superfinished.Lubrication:Aluminium-complex-soap-grease,approval according to USDA H1, -45ºC to +120ºC.If required special lubricants.Wide version. Dimensions according to DIN 648 / 12240 series K. Thread either right-handed or left-handed. Heavy-duty rod ends with roller bearing. very light running (basically without friction). Long-term lubricated and sealed with cover plates. For high loads. Material: Outer part: Stainless steel, forged, hardened. Bearing race superfinished.Inner ring and rollers: Stainless steel, hardened, superfinished. Lubrication: Aluminium-complex-soap-grease,approval according to NSF H1, -45ºC to +120ºC.If required special lubricants. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rod ends with roller bearing. very light running (basically without friction). Long-term lubricated and sealed with cover plates. For high loads.
