MÄDLERMÄDLER· Mechanics & transmission

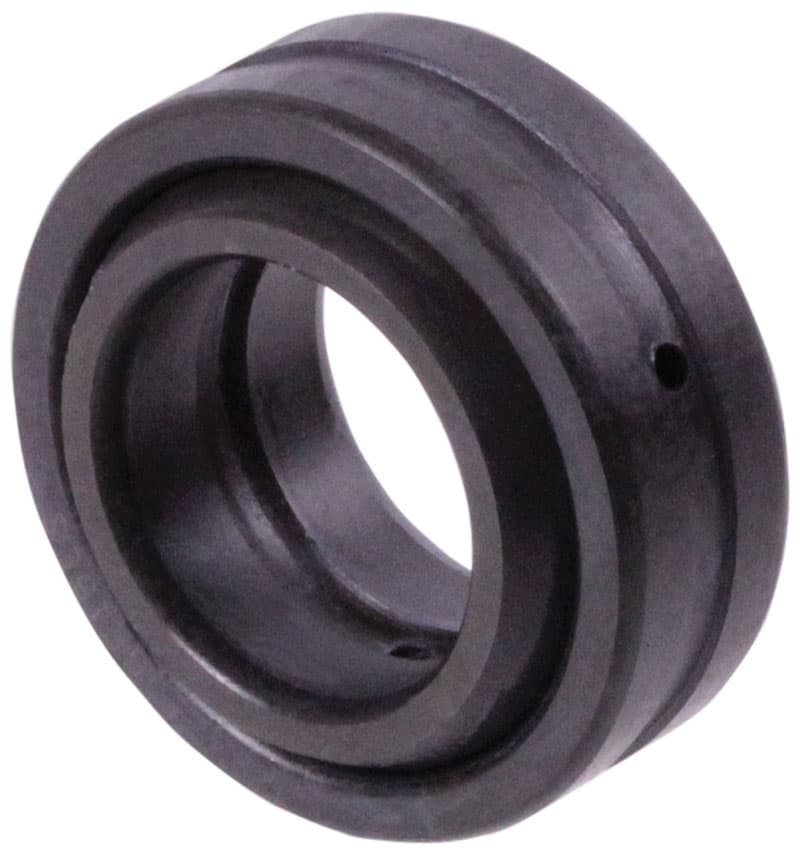

Radial spherical bearing DIN ISO 12240-1-E type GE…DO relubricateable bore 17mm outer diameter 30mm == Initial lubrication required before use ==
Manufacturer part no. 63361700
$11.19≈ 9.72 €
Price summary
Listed by MÄDLER at €9.72. Delivered to France, including shipping, VAT and any customs duty, it comes to about €29.66. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €9.72 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.94 |
| Total delivered | €29.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 40 g |
Other characteristics

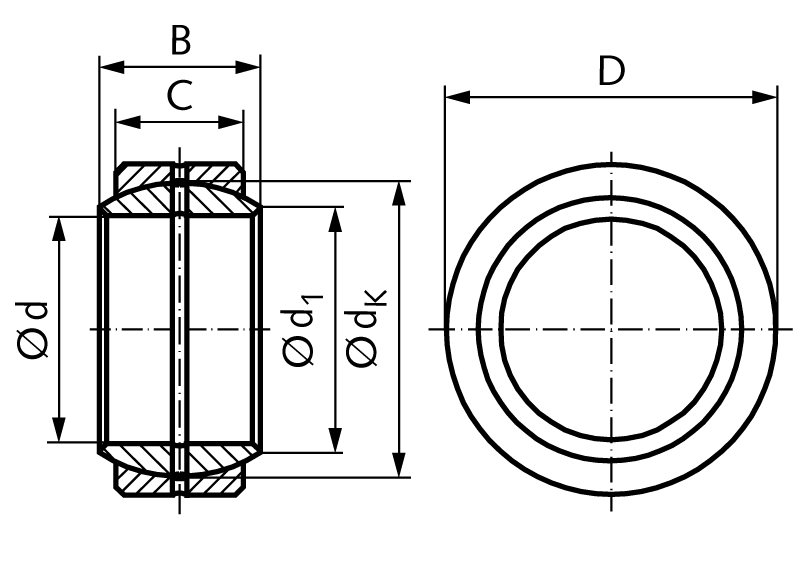

| Bearing shell width | 10 mm |
| Inner diameter | 17 mm |
| Outer diameter | 30 mm |
| Outer diameter from inner ring | 25 mm |
| Tilt angel | 10 ° |
| Total width | 14 mm |
| Material | Steel (A295) |
| Surface | Phosphated |
Description
Material: Inner ring and bearing shell from bearing steel 100Cr6, hardened, ground and phosphated. Treated with molybdenum disulfide. Bearing shell (outer ring) cut. Dimensions according to DIN ISO 12240-1 (DIN 648) series E (slim version). Re-lubricateable (from size 15 with lubrication hole). Initial lubrication before use is required. Suitable for high, alternating loads. For high sliding speed up to 60 m/min.
