Angle joint DIN 71802 type CS with safety circlip size 13 thread M8 left with nut steel zinc-plated
Manufacturer part no. 63670800
$4.94≈ 4.29 €
In stock — 16 unitslead time 14 d
Estimated landed cost
| Item | €4.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.86 |
| Total delivered | €23.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 53.1 g |
Other characteristics
| Ball diameter | 13 mm |
| Max pull out force dynamic | 881 N |
| Max pull out force static fzul stat | 1 211 N |
| Thread pitch | 1.25 mm |
| Material | Steel |
| Pivoting angle | 18°/15° ° |
| Shape | CS |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
| Thread type | left |
Description

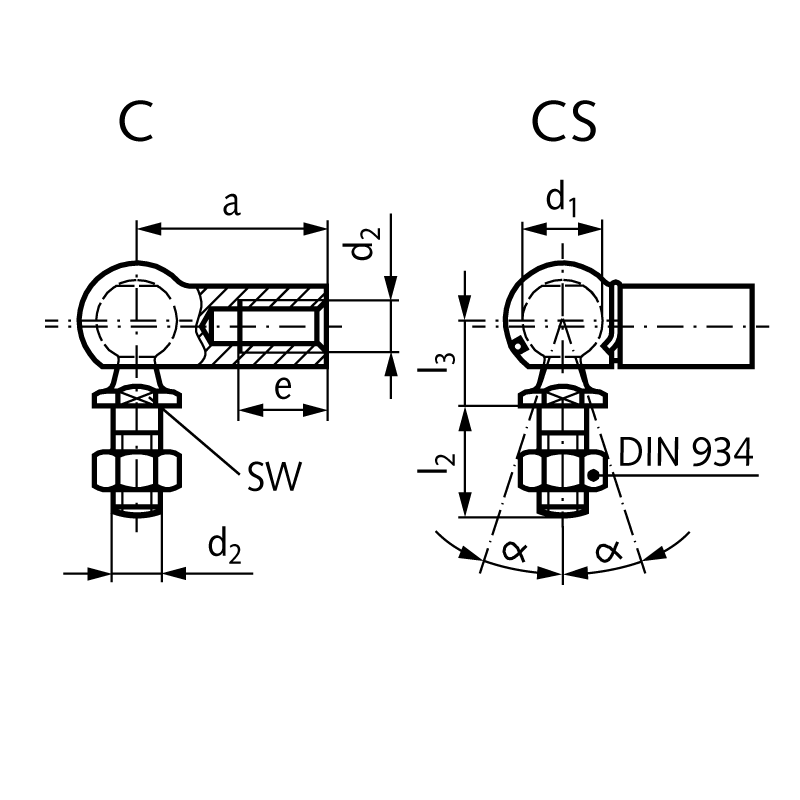

Material: Steel zinc-plated. With threaded bolt and hexagon nut, ball stud hardened. Form C: Without circlip. Form CS: With circlip. Thread: Gewindeausführung rechts = right handed thread in the socket. Gewindeausführung links = left handed thread in the socketmarked with a circumferential groove. * Pivoting angle reduced by circlip.
