MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

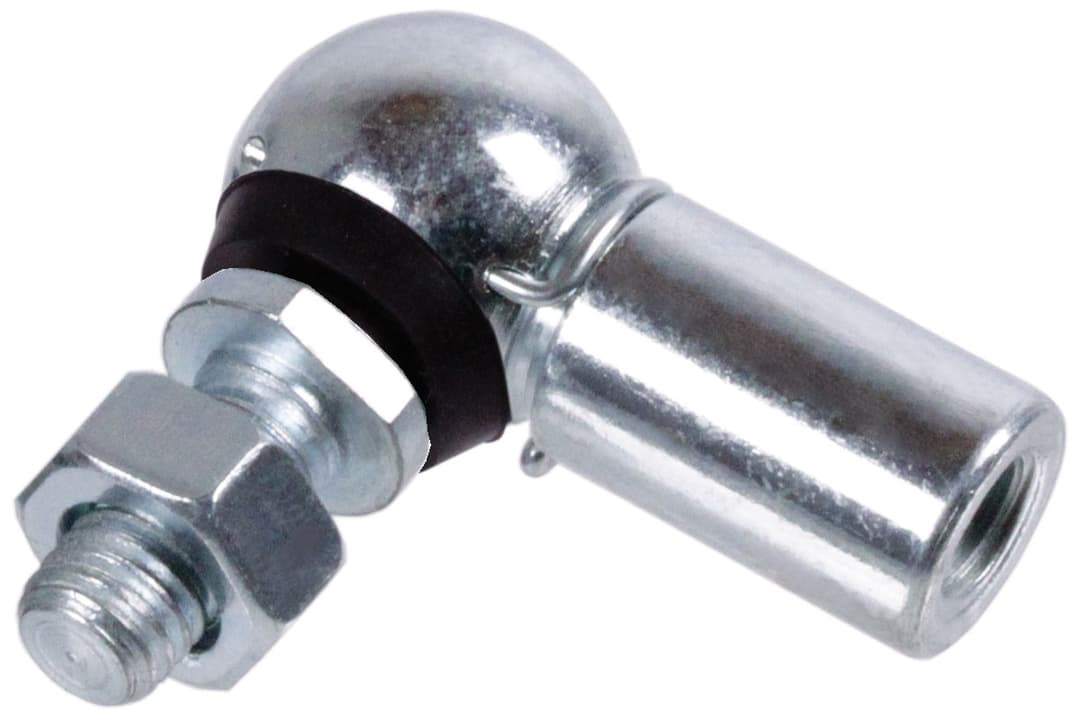

Angle joint DIN 71802 type CS with safety circlip size 13 thread M8 left with nut steel zinc-plated with mounted sealing cap
Manufacturer part no. 63672800
$5.58≈ 4.85 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €4.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.97 |
| Total delivered | €23.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 54 g |
Other characteristics
| Ball diameter | 13 mm |
| Max pull out force dynamic | 881 N |
| Max pull out force static fzul stat | 1 211 N |
| Thread pitch | 1.25 mm |
| Material | Steel / Neoprene |
| Pivoting angle | 18°/15° ° |
| Shape | CS |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
| Thread type | left |
Description

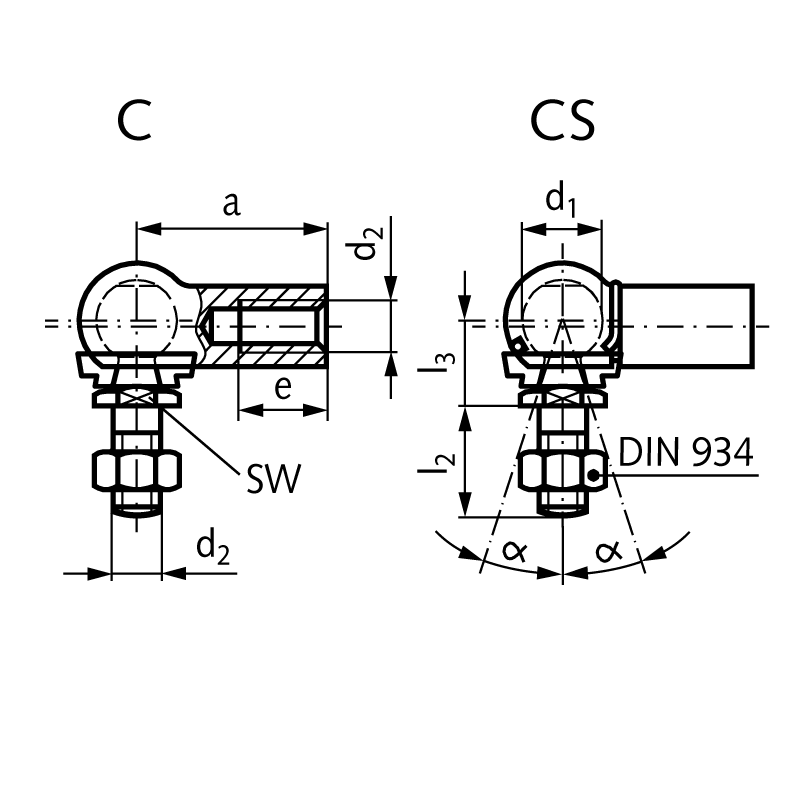

Material: Steel zinc-plated. Ball stud hardened. With mounted sealing cap from neopren, black. Form C: With threaded bolt and hexagon nut. Form CS: With threaded bolt, hexagon nut and circlip. Right = Right-hand thread in the socket. Left = Left-hand thread in the socket. * Pivoting angle reduced by circlip.
