MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

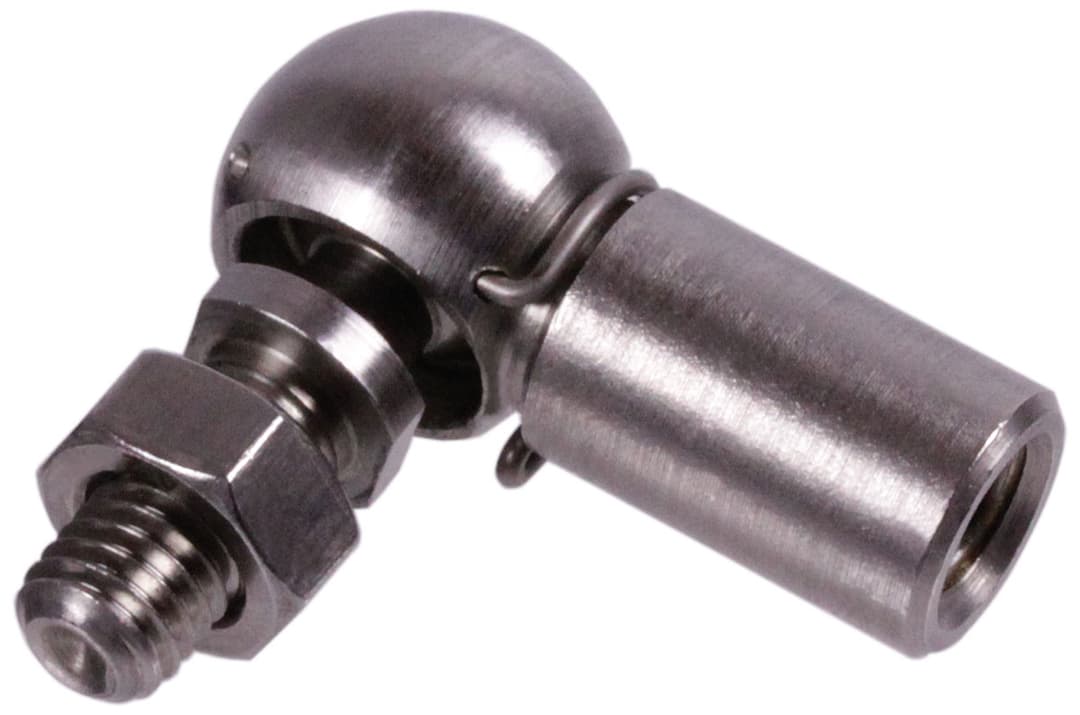

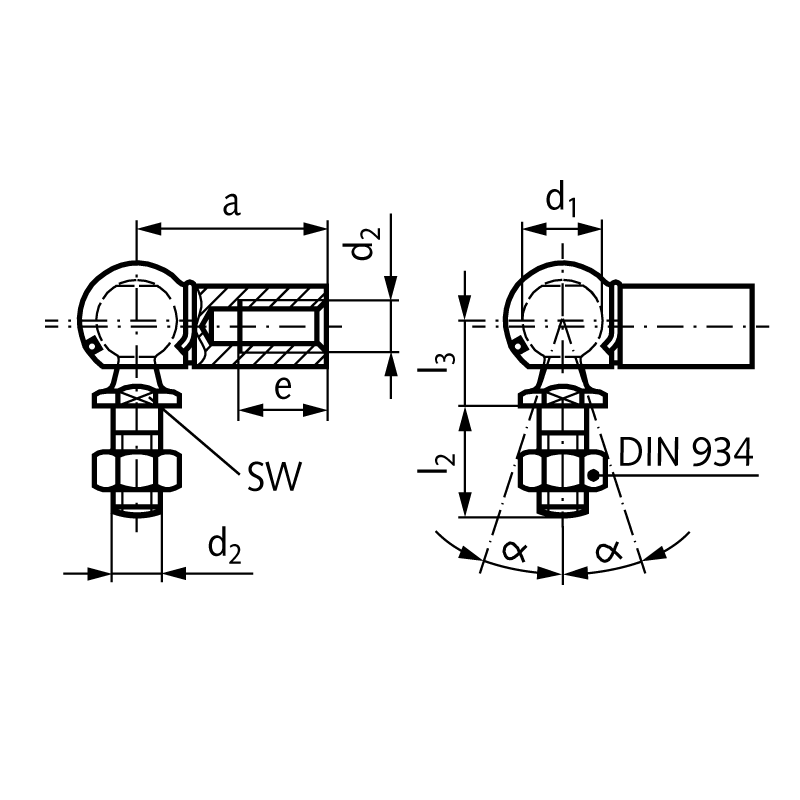

Angle joint DIN 71802 type CS with safety circlip size 8 thread M5 right with nut stainless steel 1.4301
Manufacturer part no. 63699605
$17.41≈ 15.12 €
In stock — 50 unitslead time 14 d
Estimated landed cost
| Item | €15.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.02 |
| Total delivered | €36.14 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 15.2 g |
Other characteristics
| Ball diameter | 8 mm |
| Max pull out force dynamic | 270 N |
| Max pull out force static fzul stat | 371 N |
| Thread pitch | 0.8 mm |
| Material | Stainless steel (304) |
| Pivoting angle | 18°/10° ° |
| Surface | Blank |
| Thread size | M 5 mm |
| Thread type | right |
Description
Material: Stainless steel 1.4301 (AISI 304). With threaded bolt and hexagon nut. Form CS: With circlip. Thread: Gewindeausführung rechts = right handed thread in the socket. Gewindeausführung links = left handed thread in the socket, marked with a circumferential groove. * Pivoting angle reduced by circlip.
