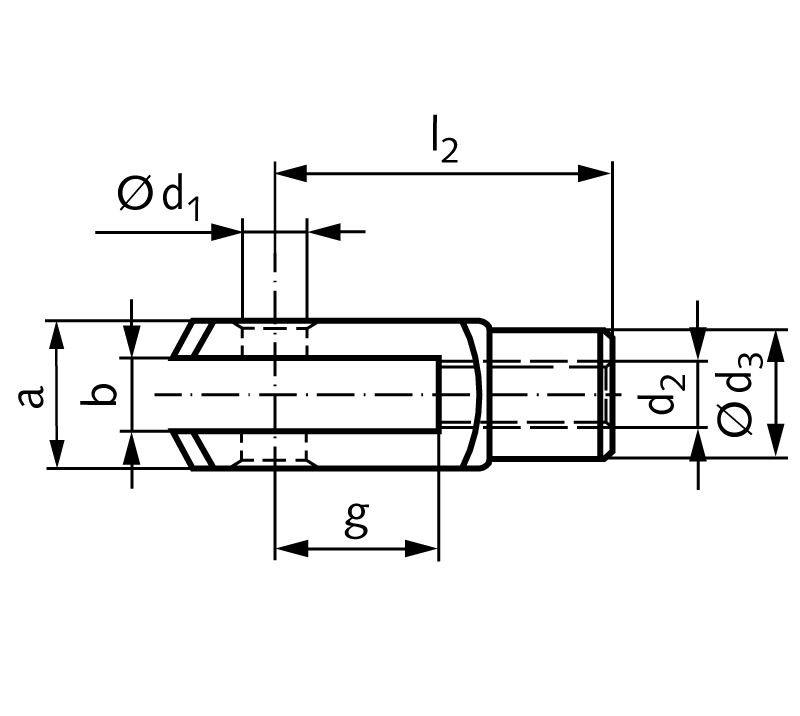

Clevis DIN 71752 size 5 x 10 right handed steel zinc-plated
Manufacturer part no.
Manufacturer part no.
Listed by MÄDLER at €2.00. Delivered to France, including shipping, VAT and any customs duty, it comes to about €20.40. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €2.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.40 |
| Total delivered | €20.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 9 g |
| Bolt diameter | 5 mm |
| Center distance to mounting surface | 20 mm |
| Inner width | 5 mm |
| Outer width | 10 mm |
| Pull out force | 2 499 N |
| Thread pitch | 0.8 mm |
| Material | Steel |
| Size | 5 x 10 |
| Surface | Zinc-plated |
| Thread size | M 5 mm |
| Thread type | right |
Material: Steel zinc-plated. Design G: without bolt. With a snap-on-bolt ES or a bolt set KL or SL, a clevis can get completed to a clevis joint. When mounting, all movable parts and contact surfaces should be lubricated. Metric ISO thread: without appendix F. Metric ISO fine thread: with appendix F. Threads: Gewindeausführung rechts = thread right-handed. Gewindeausführung rechts Fein = fine thread right-handed . Gewindeausführung links = thread left-handed. * Size 20 is not part of the DIN.
