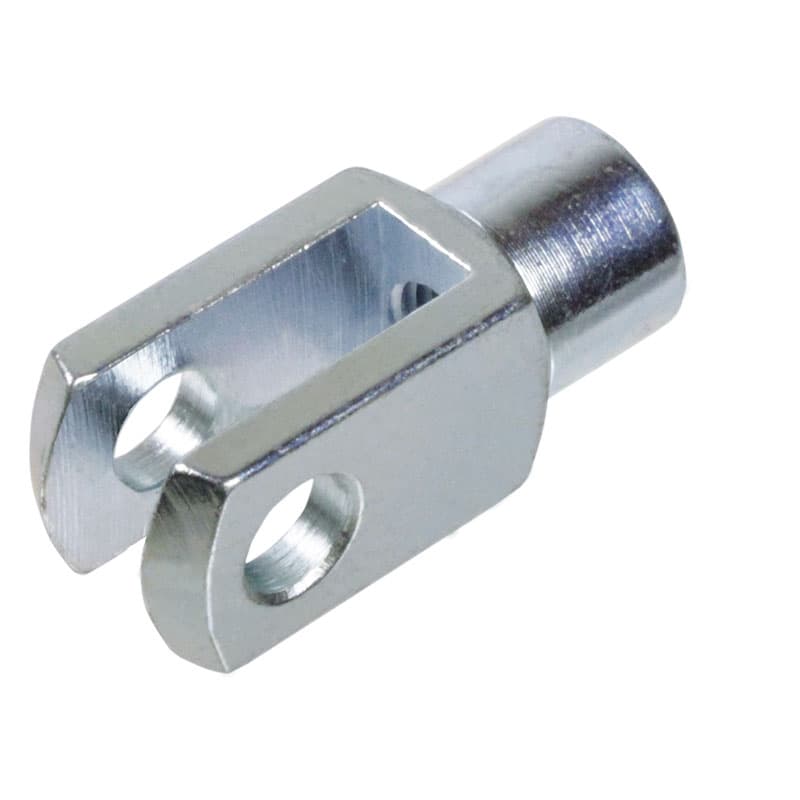

Clevis DIN 71752 size 4 x 8 left handed steel zinc-plated
Manufacturer part no. 63730100
$2.22≈ 1.93 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €1.93 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.39 |
| Total delivered | €20.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5 g |
Other characteristics
| Bolt diameter | 4 mm |
| Center distance to mounting surface | 16 mm |
| Inner width | 4 mm |
| Outer width | 8 mm |
| Pull out force | 1 545 N |
| Thread pitch | 0.7 mm |
| Material | Steel |
| Size | 4 x 8 |
| Surface | Zinc-plated |
| Thread size | M 4 mm |
| Thread type | Left |
Description
Material: Steel zinc-plated. Design G: without bolt. With a snap-on-bolt ES or a bolt set KL or SL, a clevis can get completed to a clevis joint. When mounting, all movable parts and contact surfaces should be lubricated. Metric ISO thread: without appendix F. Metric ISO fine thread: with appendix F. Threads: Gewindeausführung rechts = thread right-handed. Gewindeausführung rechts Fein = fine thread right-handed . Gewindeausführung links = thread left-handed. * Size 20 is not part of the DIN.
