MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

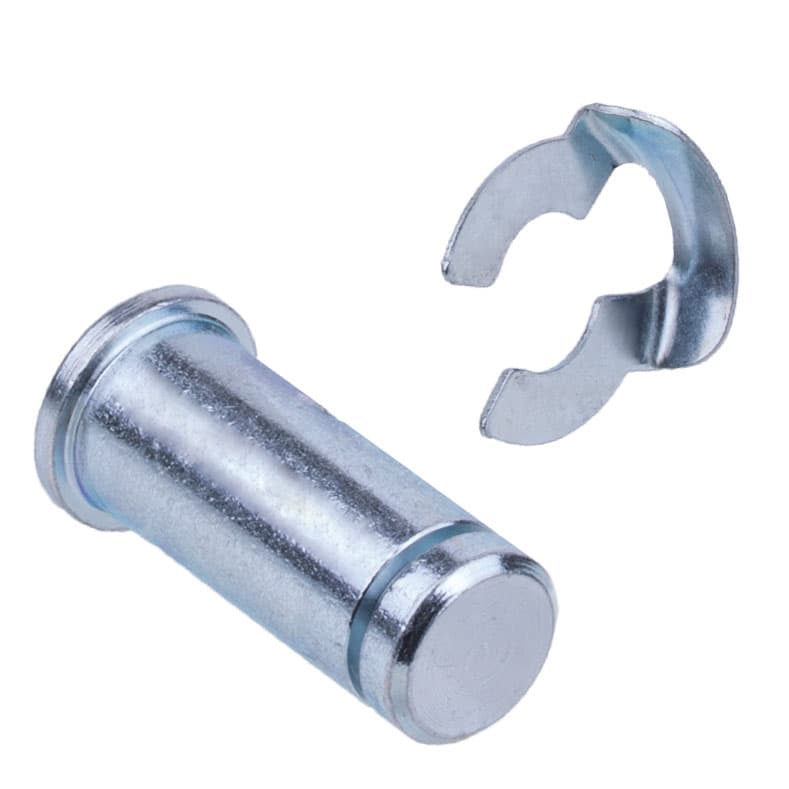

Bolt set with retainer KL ø4mm; for clevises size 4×8 and 4×16
Manufacturer part no. 63780100
$0.95≈ 0.83 €
In stock — 50 unitslead time 14 d
Estimated landed cost
| Item | €0.83 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.17 |
| Total delivered | €19.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1 g |
Other characteristics

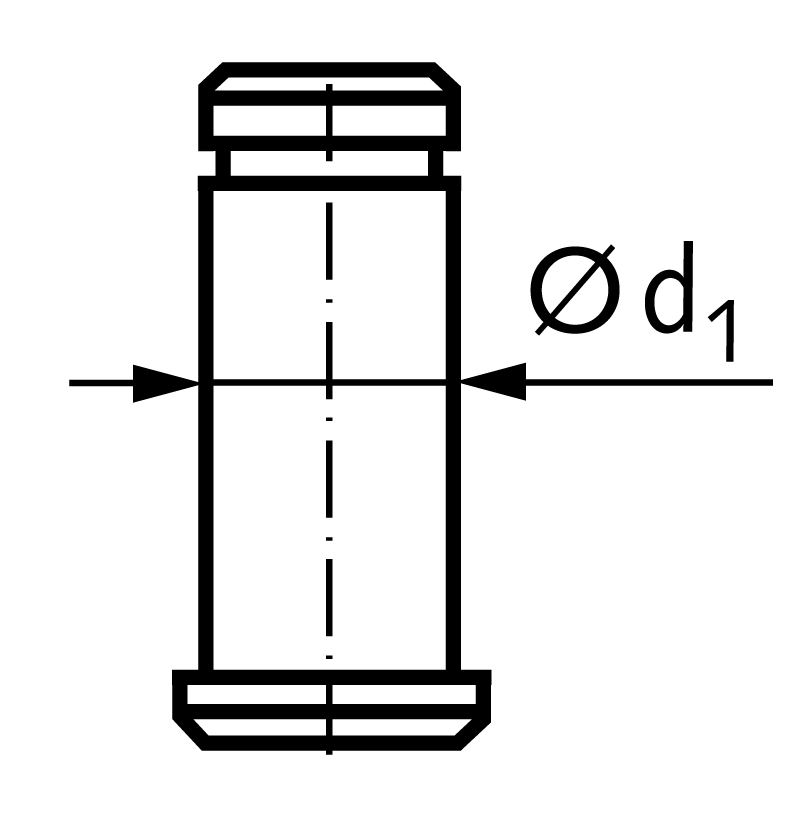

| Bolt diameter | 4 mm |
| Material | Steel |
| Suitable for clevis size | 4 x 8 / 4 x 16 |
| Surface | Zinc-plated |
Description

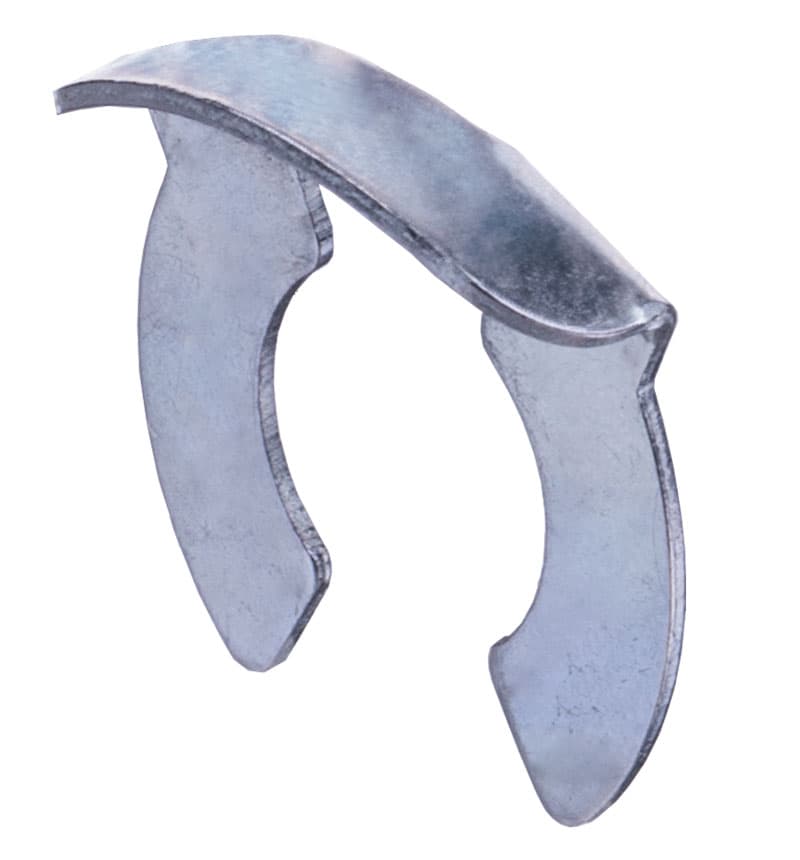

Material: Steel zinc-plated. Bolt with KL retainer. The set exists from one bolt and a fitting KL retainer. It can be used with all clevises according to DIN 71752 or other clevises with dimensions like DIN. KL retainer can get mounted and dismounted very easily. They are intended for connections which must be disassembled more often. It is necessary to ensure that there is no unwanted strong contact to the retainer, because it is easily to remove.
