MÄDLERMÄDLER· Fastening Elements

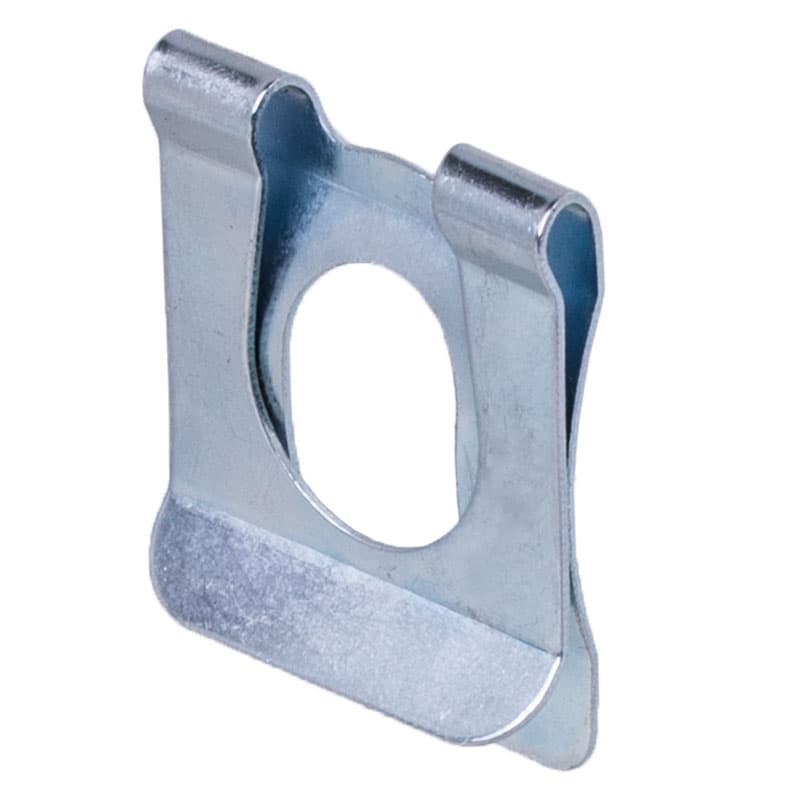

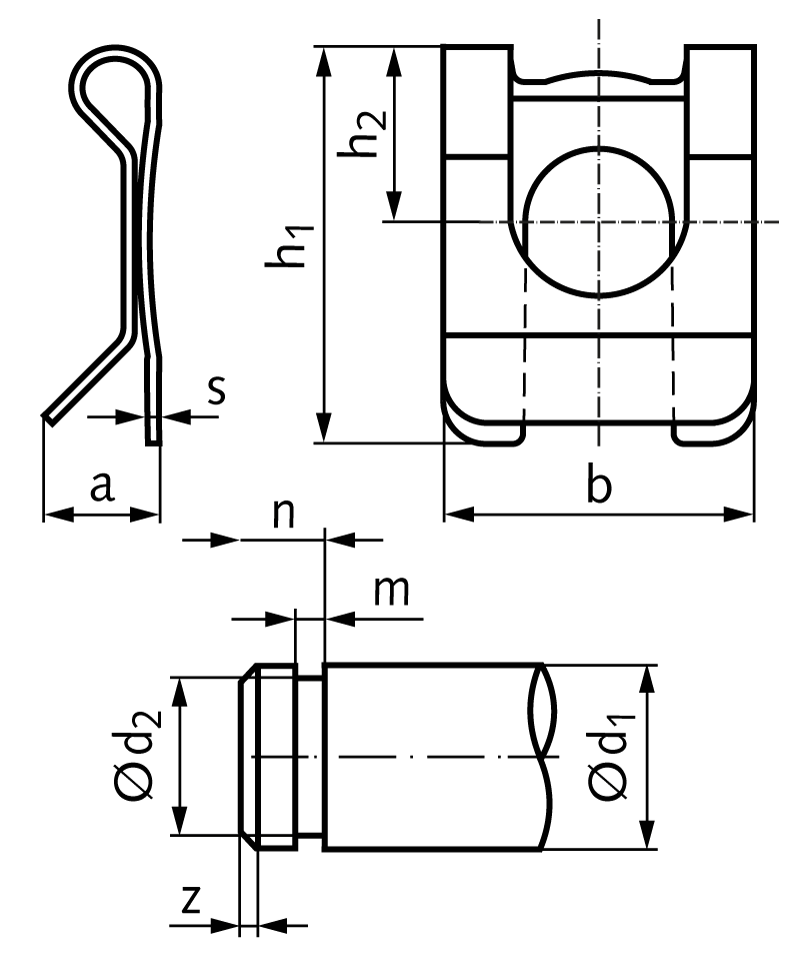

SL-retainer steel zinc plated size 6 for bolt diameter 6mm
Manufacturer part no. 63790501
$0.48≈ 0.42 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €0.42 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.08 |
| Total delivered | €18.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Admissible axial force | 1.5 kN |
| Nominal size | 6 |
| Shaft diameter | 6 mm |
| Weight per 100 pcs | 63 g |
| Material | Spring steel |
| Surface | Zinc-plated |
Description
Material: Spring steel, zinc plated. SL retainers are used to fix parts on shafts or bolts in axial direction. The large curvature results to a strong preload and eleminates tolerances for a snug fit. They are not so easy and quick to mount and to dismount like KL retainers, but the connection is much better secured against unwanted loosening. * Max. transmittable force, static, on shafts with min. strength 500 N/mm².
