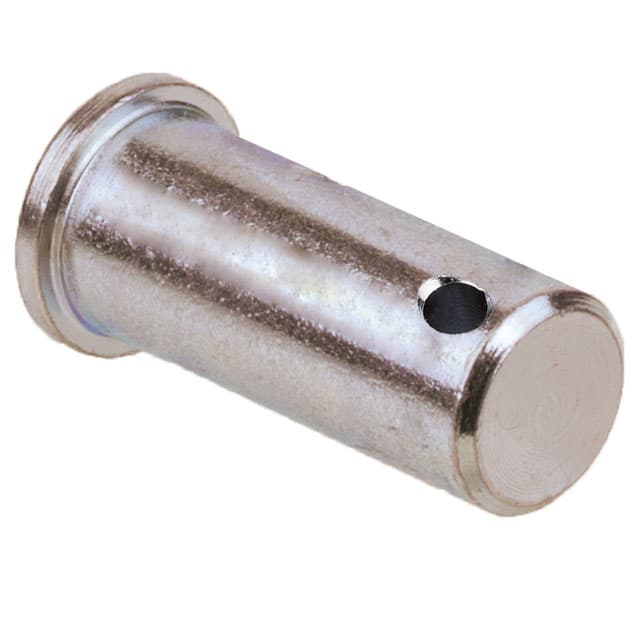

Bolt with pin hole size 40 x 100 x 90 stainless steel 1.4301; for clevis 40 x 84
Manufacturer part no. 63799440
$62.26≈ 54.07 €
Price summary
Listed by MÄDLER at €54.07. Delivered to France, including shipping, VAT and any customs duty, it comes to about €82.88. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €54.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.81 |
| Total delivered | €82.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.035 kg |
Other characteristics
| D1 h11 | 40 mm |
| D2 h14 | 48 mm |
| D3 h14 | 8 mm |
| K js14 | 6 mm |
| L1 js15 | 100 mm |
| L2 0 5 | 90 mm |
| Z | 5 mm |
| Zk | 3 mm |
Description
Material: Stainless steel 1.4301 (AISI 305). Bolts for transmission of radial forces with slightly part-turn movement, like in clevis joints. With pinhole for a split pin DIN EN ISO 1234 (formerly DIN 94) or a spring cotter pin. To be used with one washer DIN EN ISO 7089 (formerly DIN 125 A). The pin is only a protection against unwanted loosening. Not for axial load.
