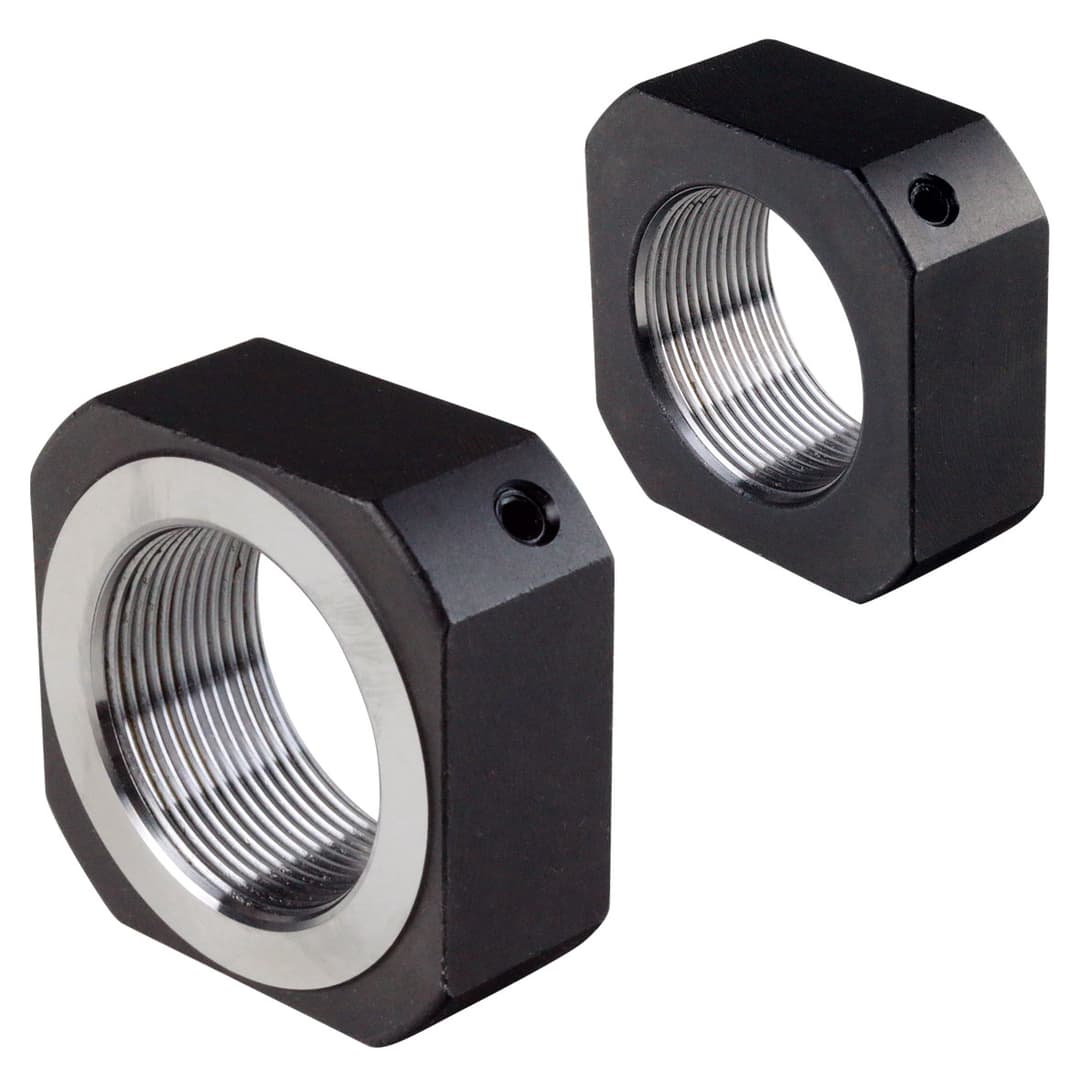

Locknut KMV size 0 M10 x 1 steel black oxided
Manufacturer part no. 64200710
$14.29≈ 12.37 €
Price summary
Listed by MÄDLER at €12.37. Delivered to France, including shipping, VAT and any customs duty, it comes to about €32.84. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €12.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.47 |
| Total delivered | €32.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 15 g |
Other characteristics
| D2 | 19 mm |
| D3 | 15 mm |
| H | 8 mm |
| L | 5.5 mm |
| Tas 1 | 0.7 Nm |
| V | 16 mm |
| D1 | M10 x 1 |
| S | M3 |
| Type | KMV 0 |
Description
Material: Steel, black oxided, contact surface ground. Reusable square nut with two integrated locking devices. The locking inserts from brass are pressed with set screws against the shaft thread. KMV locknuts are used, for example, in the MÄDLER ® spindle bearing units BK, EK and FK. They are well suited for applications, which require a high precision and trustable locking. 1) Fastening torque of locking screw.
