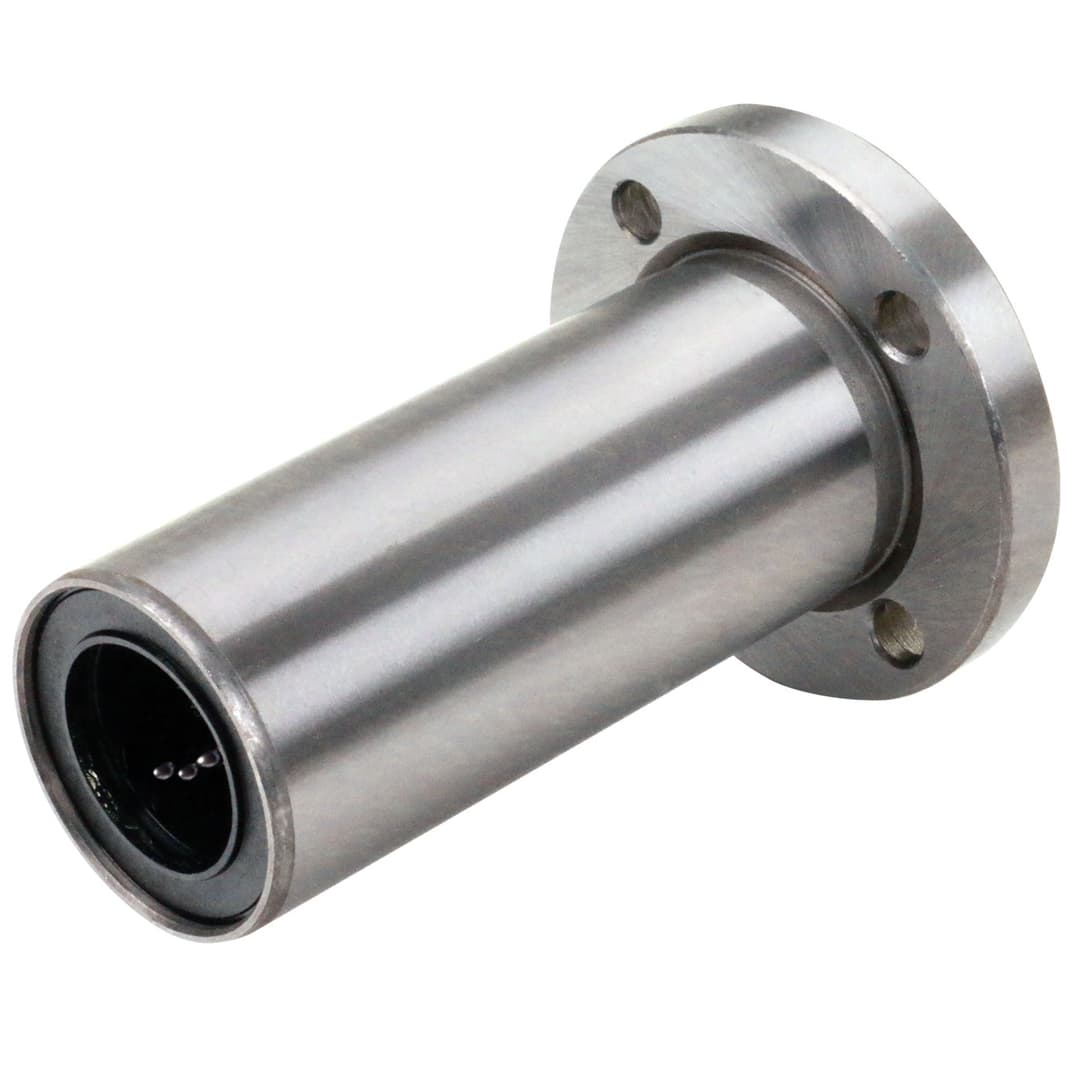

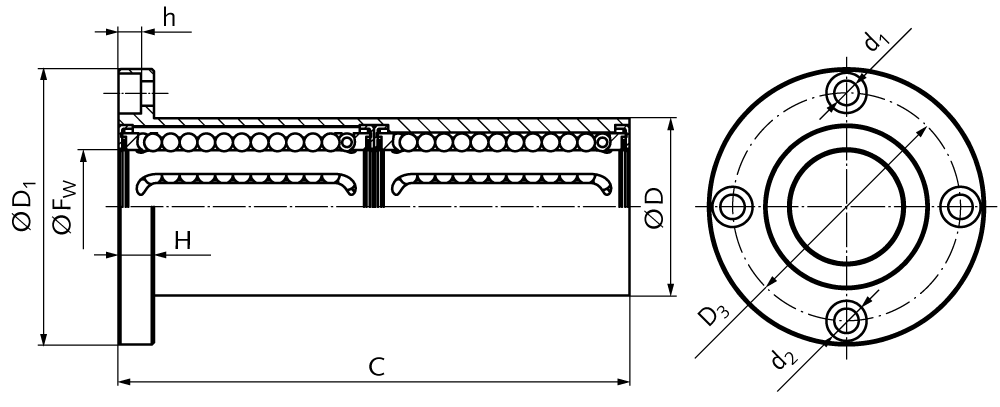

Tandem linear ball bearing KBT-ST-FL with round flange sealed on both sides for shaft Ø 8mm long version
Manufacturer part no. 64600806FL
$24.14≈ 21.51 €
Price summary
Listed by MÄDLER at €21.51. Delivered to France, including shipping, VAT and any customs duty, it comes to about €43.81. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €21.51 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.30 |
| Total delivered | €43.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 60 g |
Other characteristics
| Flange diameter | 32 mm |
| Flange width | 5 mm |
| For shaft diameter | 8 mm |
| Hole circle diameter of mounting holes | 24 mm |
| Hub diameter | 16 mm |
| Length | 46 mm |
| Load rating dynamic | 421 N |
| Static load rating | 804 N |
| Diameter of mounting holes d1 x d2 x h | 3.5 x 6 x 3.1 mm |
| Material | Steel / Plastic |
| Surface | Blank |
Description
Material: With Steel jacket. Ball cage from plastic. The linear ball bearings are suitable for screwing onto components. Via the four mounting holes, the linear bearings can be mounted directly e. g. in machines.This ensures easy mounting and interchangeability. The bearings are greased at the factory. In order to prevent the ingress of dirt and the leakage of lubricant, the linear ball bearings are sealed on both sides. Recommended shaft tolerance h6, housing tolerance H7.
