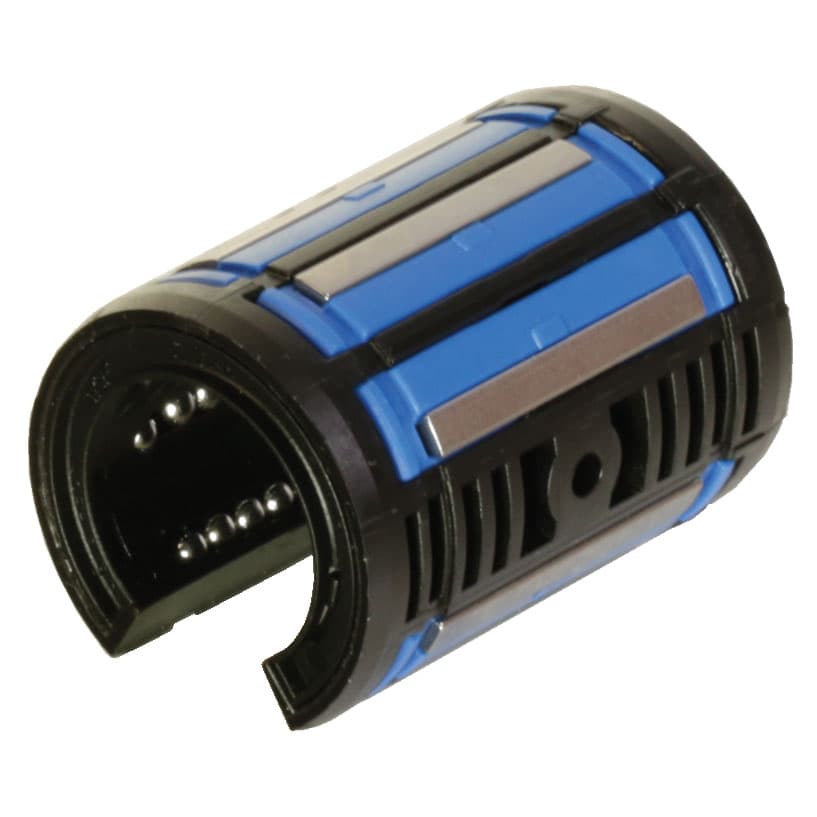

Open Linear ball bearing KB-3-O ISO series 3 premium with shields for shaft Ø 12mm
Manufacturer part no. 64601201
$96.80≈ 84.06 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €84.06 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €19.81 |
| Total delivered | €118.87 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

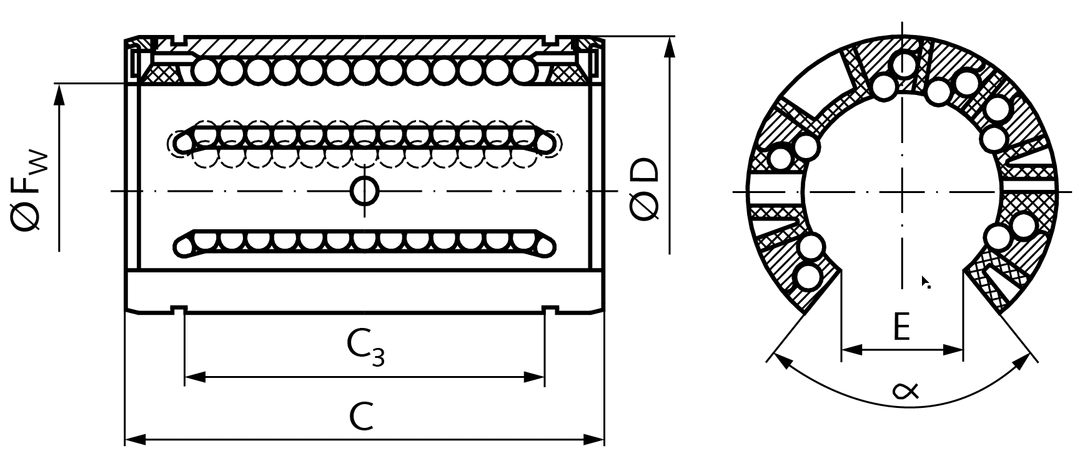

Specifications (automatically extracted)
Mechanical
| Weight | 13 g |
Other characteristics
| Angle | 78 ° |
| For shaft diameter | 12 mm |
| Length | 32 mm |
| Load rating dynamic | 1 160 N |
| Outer diameter | 22 mm |
| Static load rating | 980 N |
| Material | Plastic / Steel |
| Surface | Blank |
Description
KB-3 linear bearings series 3 of ISO 10285 from premium brand in top quality. High load-bearing capacity, due to the asymmetric position of the rows of balls and the specially shaped raceway segments. These linear bearings can be fitted inside a closed or open housing and are thus adjustable. Lubricated, ready-to-install. Recommended shaft tolerance h6, housing tolerance H6.
