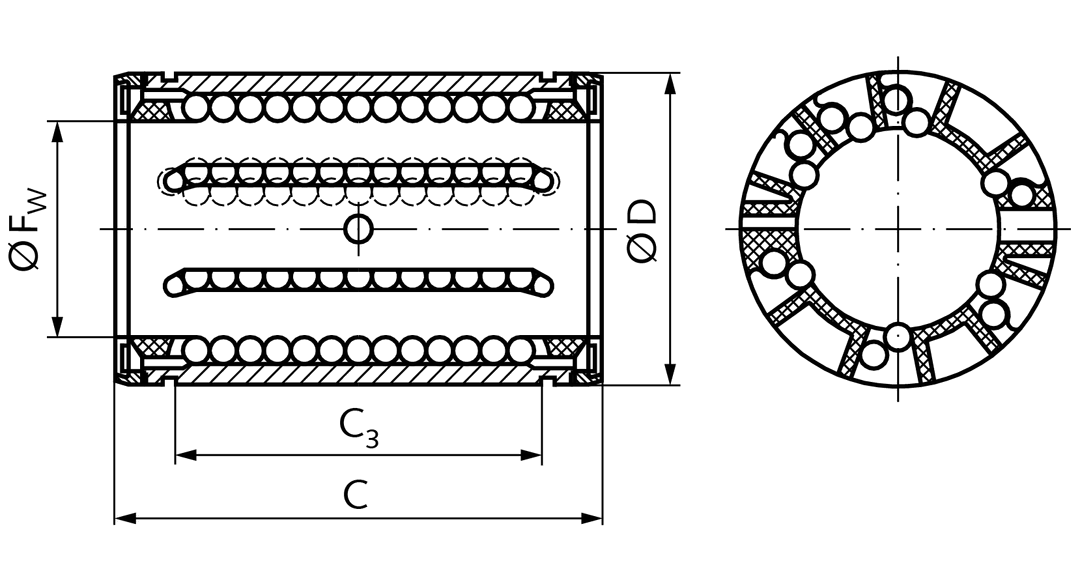

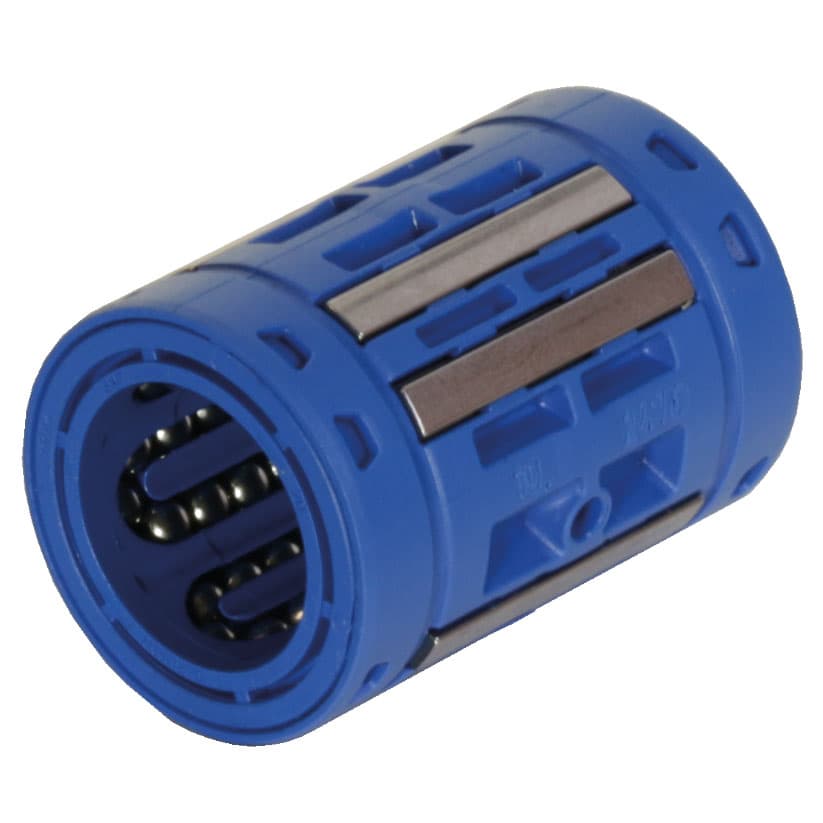

Linear ball bearing KB-3 ISO series 3 premium with shields for shaft Ø 20mm
Manufacturer part no. 64602000
$88.58≈ 76.93 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €76.93 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.39 |
| Total delivered | €110.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 56 g |
Other characteristics
| For shaft diameter | 20 mm |
| Length | 45 mm |
| Load rating dynamic | 3 250 N |
| No of ball rows | 6 |
| Outer diameter | 32 mm |
| Static load rating | 2 650 N |
| Material | Plastic / Steel |
| Suitable snap ring din471 | 617 432 00 |
| Surface | Blank |
Description
KB-3 linear bearings series 3 of ISO 10285 from premium brand in top quality. High load-bearing capacity, due to the asymmetric position of the rows of balls and the specially shaped raceway segments. These linear bearings can be fitted inside a closed or open housing and are thus adjustable. Lubricated, ready-to-install. Recommended shaft tolerance h6, housing tolerance H6.
