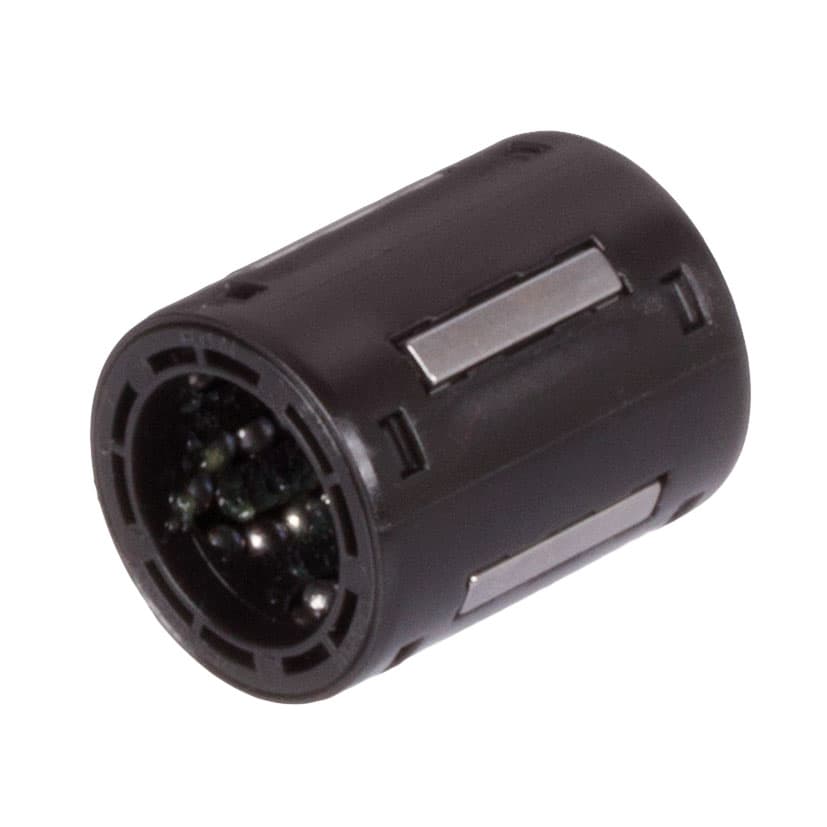

Linear ball bearing KB-1 ISO series 1 premium with shields for shaft Ø 20mm
Manufacturer part no. 64602020
$35.07≈ 30.46 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €30.46 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.09 |
| Total delivered | €54.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 21 g |
Other characteristics
| For shaft diameter | 20 mm |
| Length | 30 mm |
| Load rating dynamic | 1 160 N |
| No of ball rows | 6 |
| Outer diameter | 28 mm |
| Static load rating | 800 N |
| Material | Plastic / Steel |
| Surface | Blank |
Description
KB-1 linear bearings series 1 of ISO 10285 from premium brand in top quality. Compact dimensions enable a space-saving and cost efficient linear support. Easy to mount, automatic retention in the mounting bore. I.e., if the boring in the housing is exact, the bearing does not to be secured axially. Bearings with inner diameter up to 5mm must be lubricated before mounting. Recommended shaft tolerance h6, housing tolerance H6.
