MÄDLERMÄDLER· Mechanics & transmission

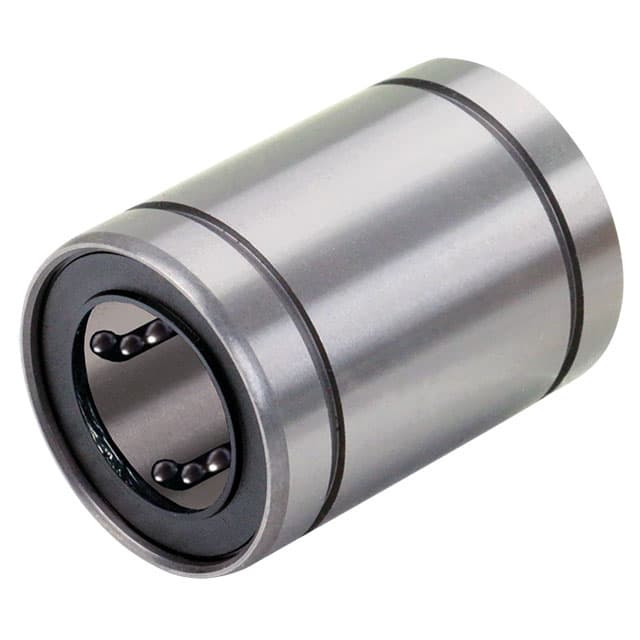

Linear ball bearing KB-3-STS ISO series 3 ball cage from steel sealed on both sides for shaft Ø 25mm
Manufacturer part no. 64602506S
$32.56≈ 28.28 €
Price summary
Listed by MÄDLER at €28.28. Delivered to France, including shipping, VAT and any customs duty, it comes to about €51.94. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €28.28 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.66 |
| Total delivered | €51.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

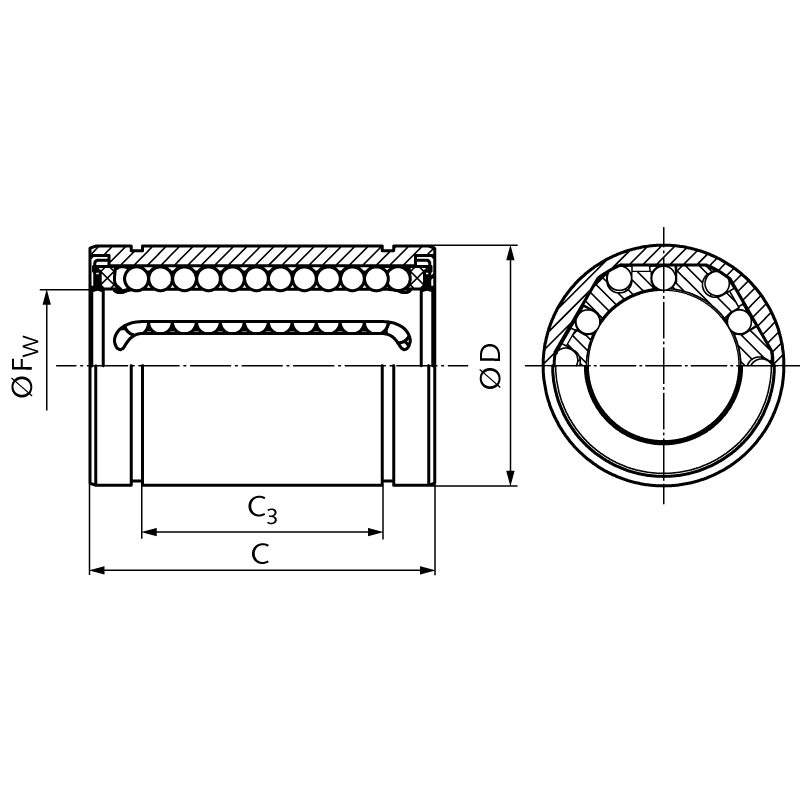

Specifications (automatically extracted)
Mechanical
| Weight | 210 g |
Other characteristics
| C | 58 mm |
| D | 40 mm |
| Fw | 25 mm |
| Load rating dyn c | 1 330 N |
| Load rating stat c0 | 1 600 N |
| Suitable retaining ring | 61 744 000 |
| C3 | 40,4 -0,3 |
Description
Material: With Steel jacket. Ball cage from steel. These linear bearings can be fitted inside a customer‘s housing or as spare parts for our closed units ISO Series 3. The bearings are greased at the factory. In order to prevent the ingress of dirt and the leakage of lubricant, the linear ball bearings are sealed on both sides. Recommended shaft tolerance h6, housing tolerance H7. * ISO series 5.
