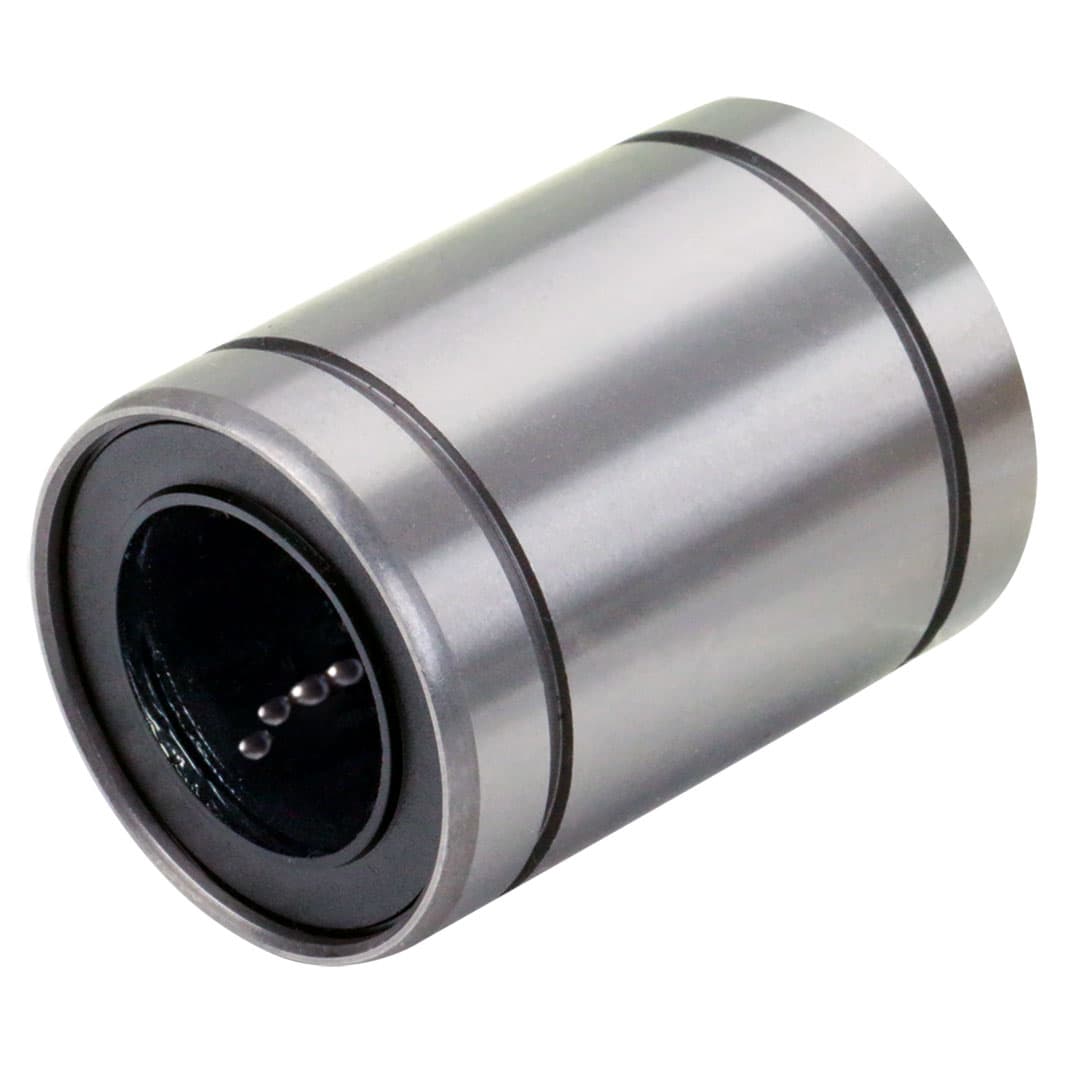

Linear ball bearing KB-3-ST ISO series 3 sealed on both sides for shaft Ø 40mm
Manufacturer part no. 64604006
$40.28≈ 34.98 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €34.98 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.00 |
| Total delivered | €59.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 700 g |
Other characteristics
| For shaft diameter | 40 mm |
| Length | 80 mm |
| Load rating dynamic | 2 920 N |
| Outer diameter | 62 mm |
| Retaining ring | 61 746 200 |
| Static load rating | 4 100 N |
| Suitable snap ring din471 | 61 746 200 |
| Weight retaining ring | 14.3 g |
| Material | Plastic / Steel |
| Surface | Blank |
Description
Material: With Steel jacket. Ball cage from plastic. These linear bearings can be fitted inside a customer‘s housing or as spare parts for our closed units ISO Series 3. The bearings are greased at the factory. In order to prevent the ingress of dirt and the leakage of lubricant, the linear ball bearings are sealed on both sides. Recommended shaft tolerance h6, housing tolerance H7.
