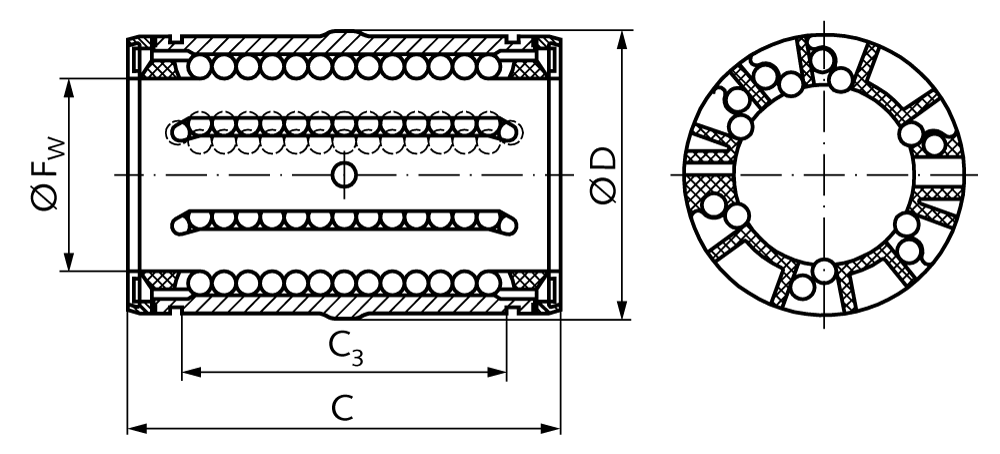

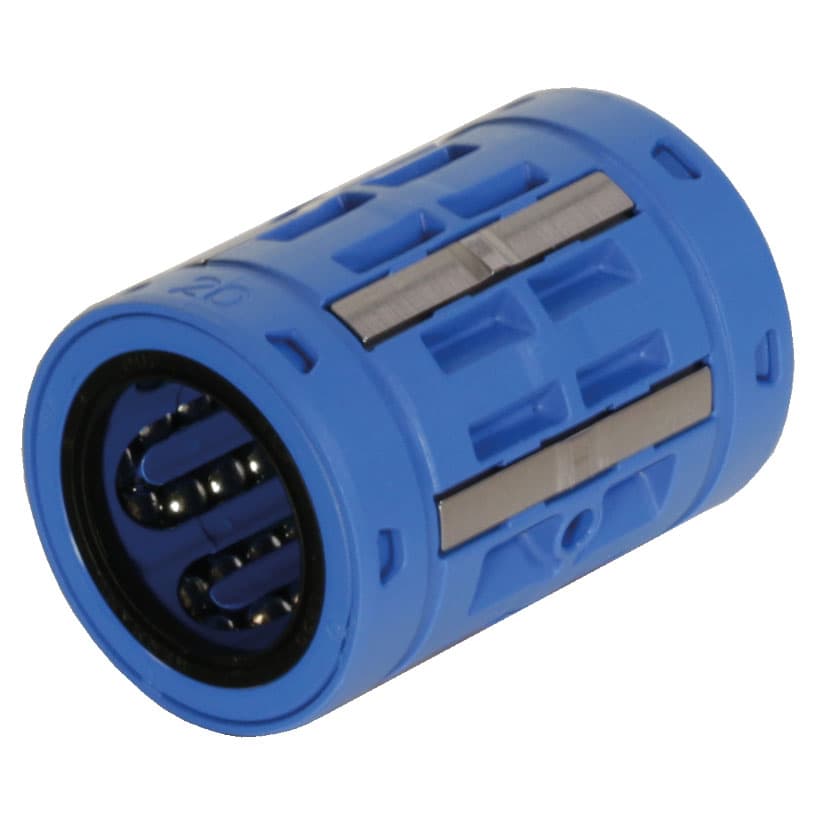

Self-aligning linear bearing KB-3-A ISO series 3 premium with seals for shaft Ø 12mm
Manufacturer part no. 64611206
$71.99≈ 62.52 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €62.52 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.50 |
| Total delivered | €93.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 20 g |
Other characteristics
| For shaft diameter | 12 mm |
| Length | 32 mm |
| Load rating dynamic | 1 220 N |
| Outer diameter | 22 mm |
| Static load rating | 930 N |
| Suitable snap ring din471 | 61 742 200 |
| Material | Plastic / Steel |
| Surface | Blank |
Description
Self-aligning linear bearings series 3 of ISO standard 10285 from premium brand in top quality. High load-bearing capacity, due to the asymmetric position of the rows of balls and the specially shaped raceway segments. These linear bearings can be fitted inside a closed or open housing and are thus adjustable. With wiping double-lip seals. These bearings are self-aligning up to +/- 0,5°. Bearings with FW 5mm must be lubricated before use. All other bearings are lubricated ready-to-install. Recommended shaft tolerance h6, housing tolerance H6.
