MÄDLERMÄDLER· Linear Motion, Linear Bearings, Precision Rail Guides

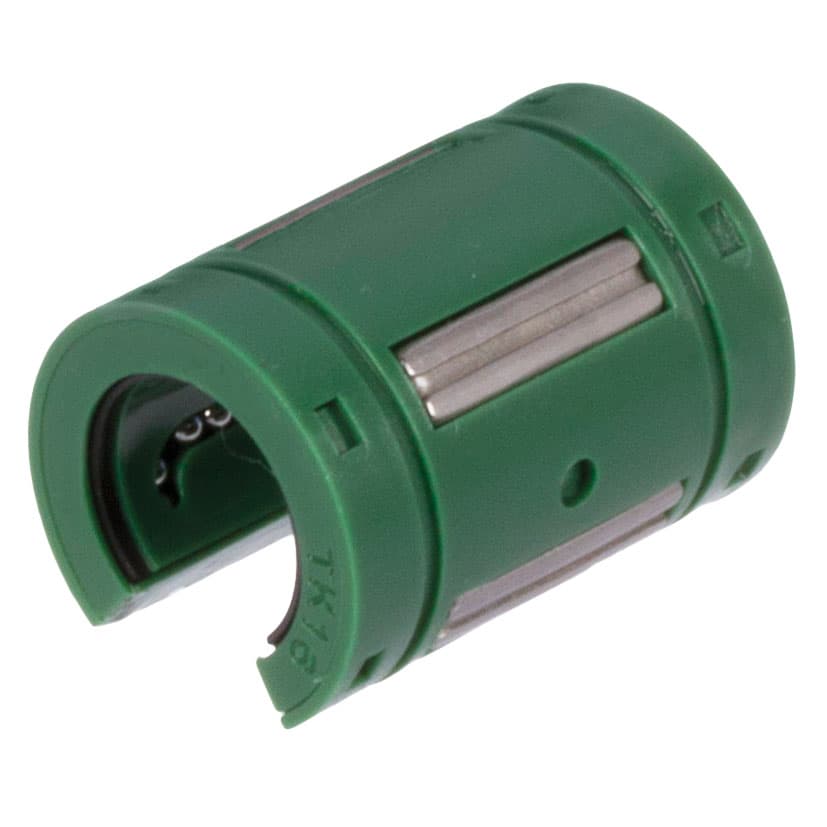

Linear bearing KB-3 ISO series 3 Easy-Line with seals for shaft Ø 20mm open design
Manufacturer part no. 64612003
$47.38≈ 41.15 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €41.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.23 |
| Total delivered | €67.38 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 36 g |
Other characteristics
| Angle | 55 ° |
| For shaft diameter | 20 mm |
| Length | 45 mm |
| Load rating dynamic | 2 090 N |
| Outer diameter | 32 mm |
| Static load rating | 2 630 N |
| Material | Plastic / Steel |
| Surface | Blank |
Description
Linear bearings from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. These linear bearings can be fitted inside a customer´s housing or as spare parts for our closed Easy-Line units. With wiping lip seals. These bearings are self-aligning up to +/- 0,5°. All bearings must be lubricated before use. Recommended shaft tolerance h6, housing tolerance H6.
