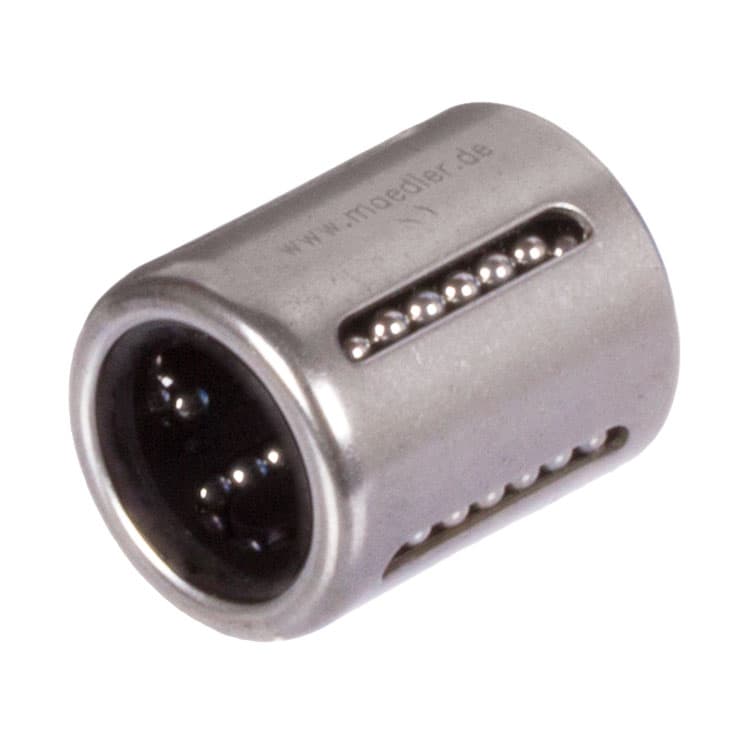

Linear bearing KB-1-ST ISO series 1 with steel jacket without seals for shaft Ø 14mm
Manufacturer part no. 64621414
$28.67≈ 24.90 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €24.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.98 |
| Total delivered | €47.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 20.5 g |
Other characteristics

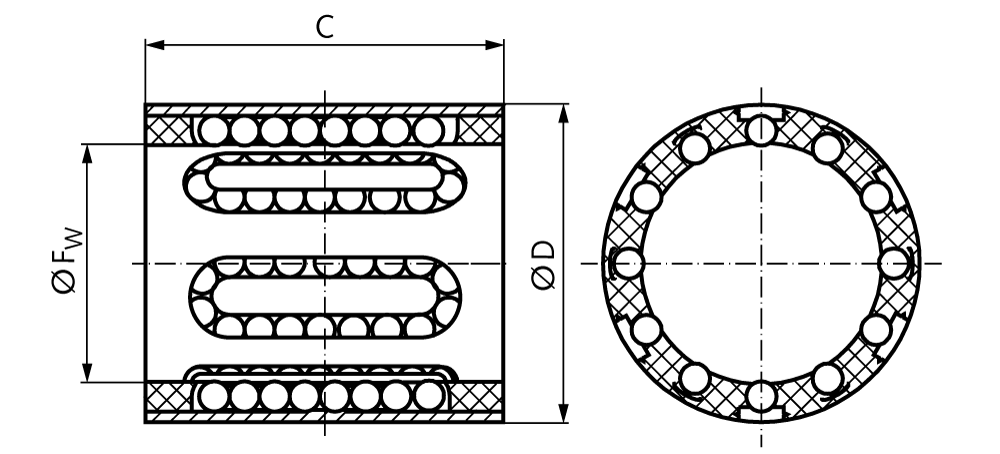

| For shaft diameter | 14 mm |
| Length | 28 mm |
| Load rating dynamic | 620 N |
| Outer diameter | 21 mm |
| Static load rating | 520 N |
| Material | Plastic / Steel |
| Surface | Blank |
Description
Linear bearings ISO Series 1 in high quality. With steel jacket. Ball cage from plastic. These linear bearings can be fitted inside a customer´s housing or as spare parts for our closed units ISO Series 1. Without seals, for easy running. These bearings are self-aligning up to +/- 0,5°. All bearings must be lubricated before use. Recommended shaft tolerance h6, housing tolerance H6.
