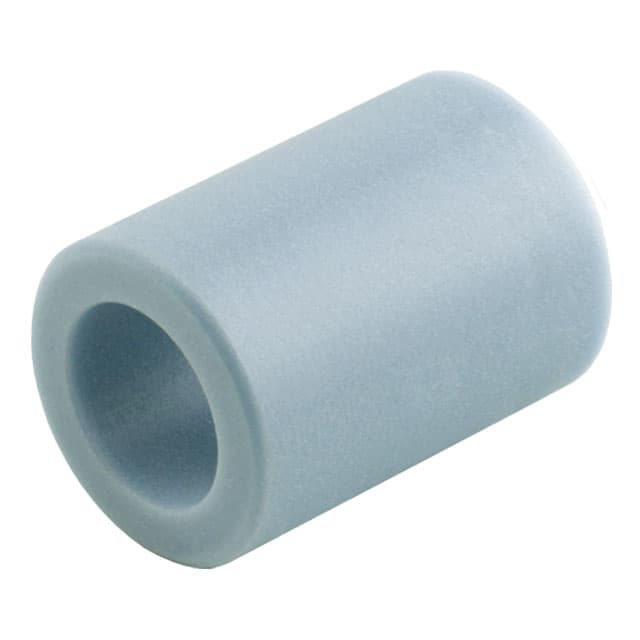

Linear slide bearing PO-1 ISO series 1 premium for shaft diameter 20 mm outside diameter 28 mm length 30 mm
Manufacturer part no. 64622020P
$31.57≈ 27.32 €
Price summary
Listed by MÄDLER at €27.32. Delivered to France, including shipping, VAT and any customs duty, it comes to about €50.78. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €27.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.46 |
| Total delivered | €50.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11 g |
Other characteristics

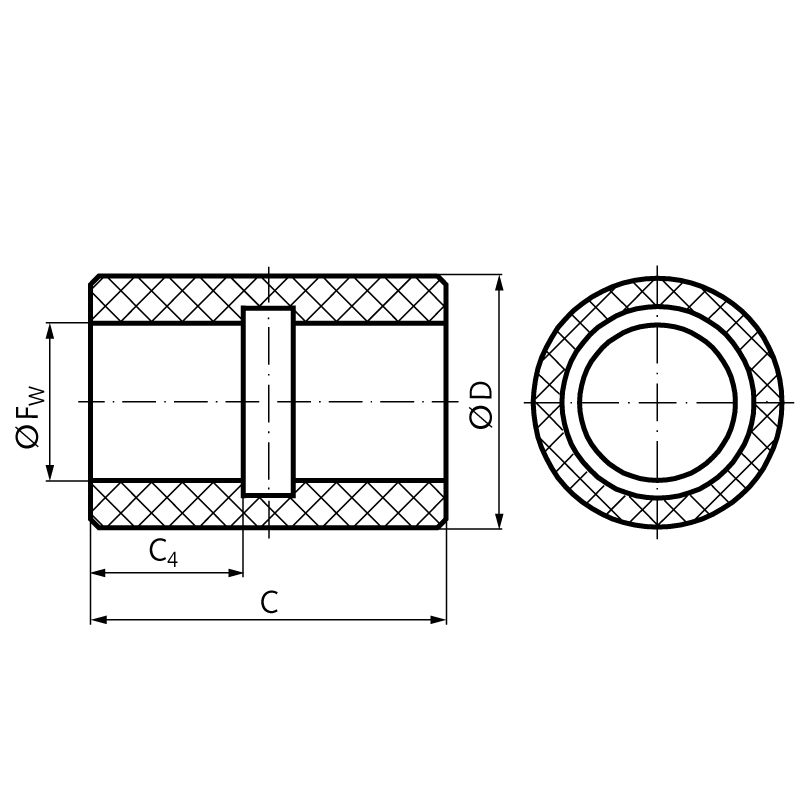

| C | 30 mm |
| C4 | 13 mm |
| D | 28 mm |
| Fw | 20 mm |
| Load rating dyn c at | 2 080 |
| Tragz stat co | 7 350 N |
Description
Material: self-lubricationg sliding material is polyacetal with a specific polyethylene. The linear slide bearings should be specifically chosen if, due to unusual operating conditions, linear bearings cannot be used. These self-holding linear slide bearings feature the same mounting and securing options as the linear bearings of the ISO Series 1 and can be fitted in the same housings. Tolerances: Mounting hole H6, shaft h6. Temperature range: -40ºC to +80ºC. * Nominal size for the mounting hole. The bearing is made with oversize for press fit, 0.1 to 0.3 mm, depending on the size.
