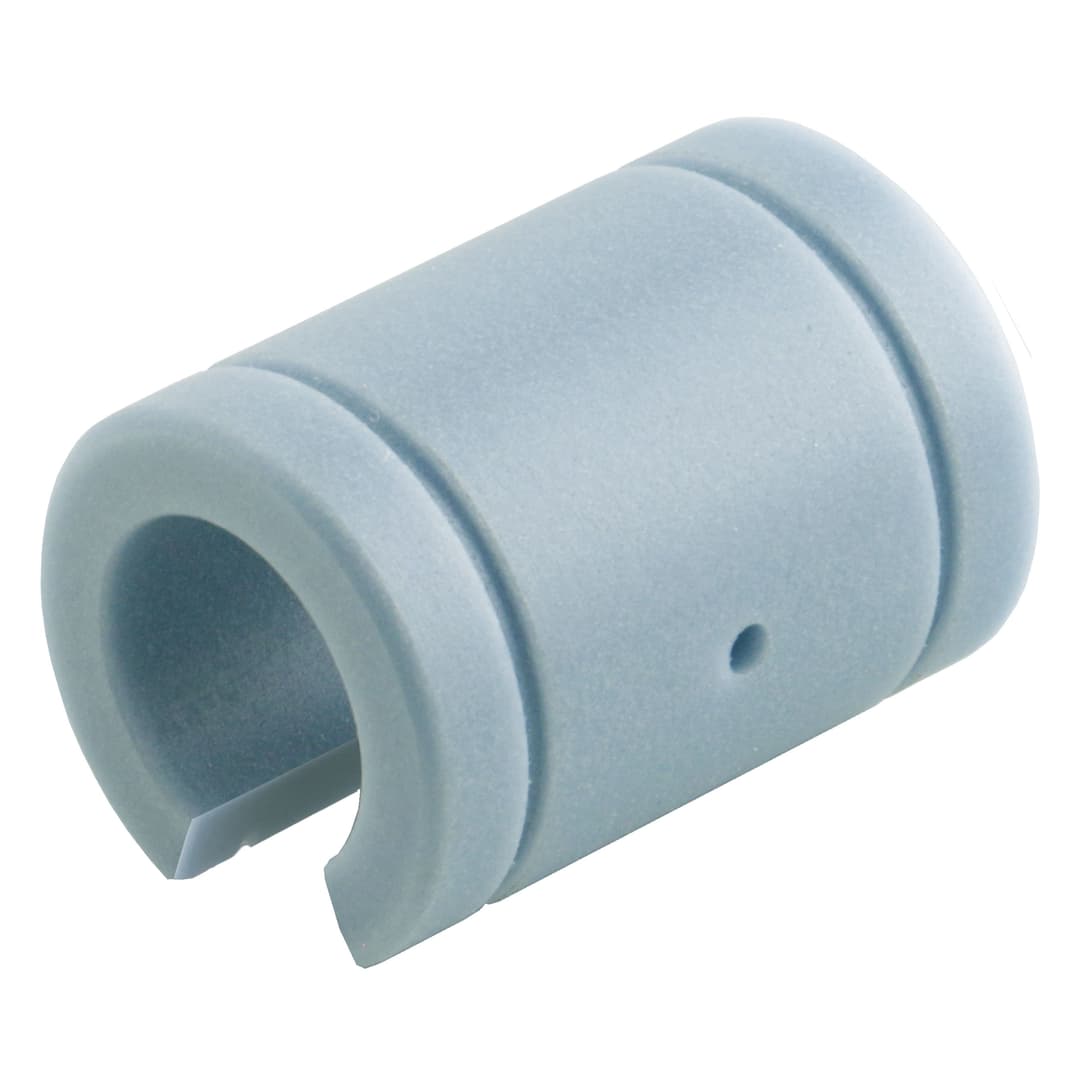

Open Linear slide bearing PO-3-O ISO series 3 premium for shaft diameter 25mm
Manufacturer part no. 64622501
$120.73≈ 104.85 €
Price summary
Listed by MÄDLER at €104.85. Delivered to France, including shipping, VAT and any customs duty, it comes to about €143.82. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €104.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.97 |
| Total delivered | €143.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

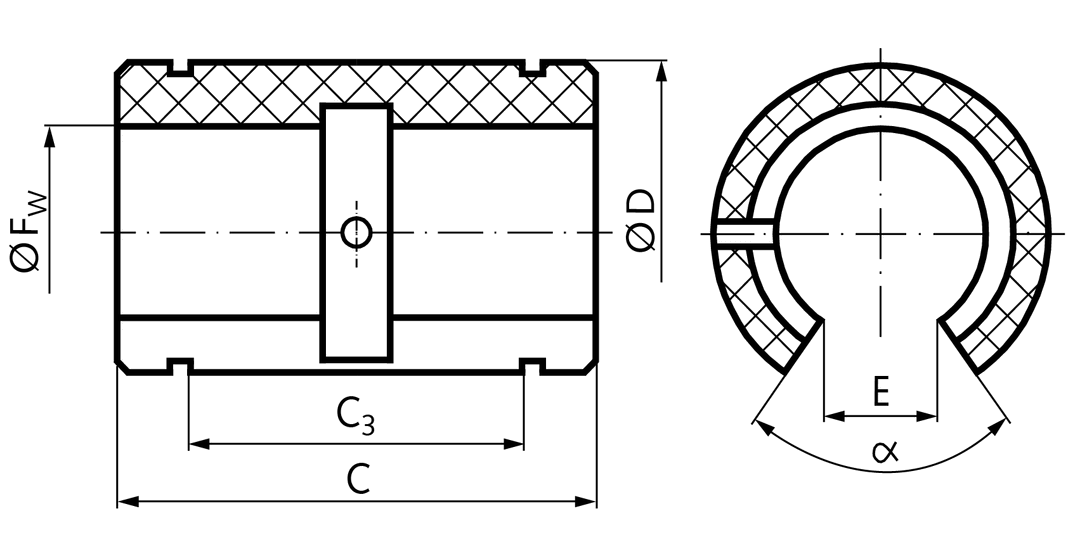

Specifications (automatically extracted)
Mechanical
| Weight | 45 g |
Other characteristics
| Angle | 60 ° |
| For shaft diameter | 25 mm |
| Length | 58 mm |
| Load rating dynamic at 0 1m s | 4 000 N |
| Load rating dynamic at 4m s | 100 N |
| Outer diameter | 40 mm |
| Static load rating | 14 000 N |
| Material | Plastic |
| Surface | Blank |
Description
Material: Polyacetal with a specific polyethylene. Linear slide bearings have the same external dimensions as the linear bearings of the ISO Series 3. The linear slide bearings should be specifically chosen if, due to unusual operating conditions, linear bearings cannot be used. Linear slide bearings feature the same mounting and securing options as the linear bearings of the ISO Series 3 and can be fitted in the same housings. Temperature range: -40°C to +80°C.
