MÄDLERMÄDLER· Linear Motion, Linear Bearings, Precision Rail Guides

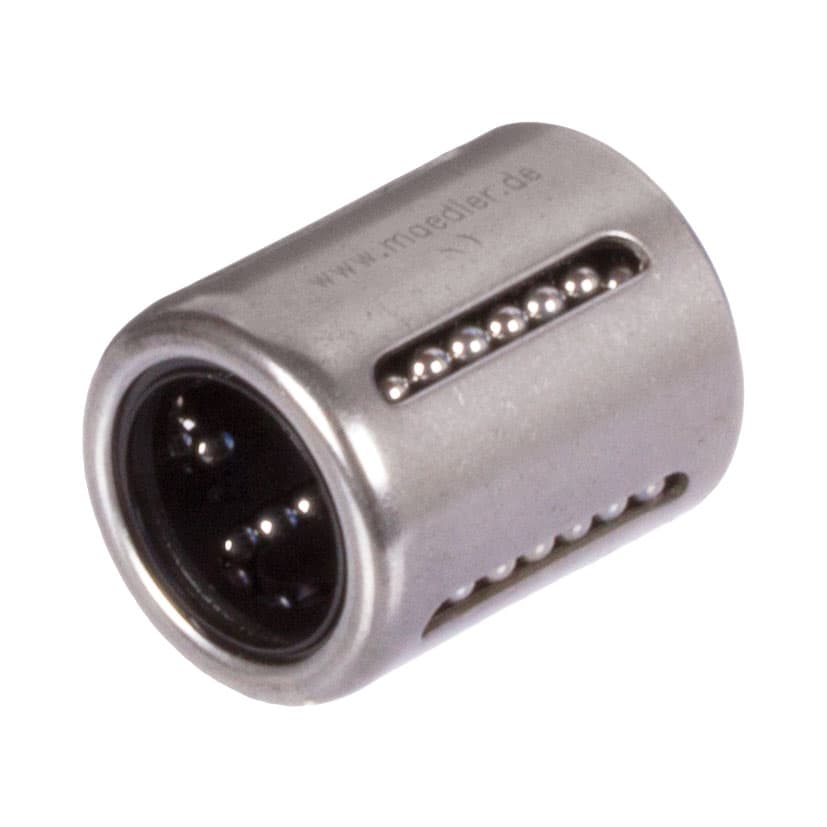

Linear bearing KB-1-ST ISO series 1 with steel jacket with seals for shaft Ø 30mm
Manufacturer part no. 64633030
$33.59≈ 29.17 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €29.17 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.83 |
| Total delivered | €53.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 95 g |
Other characteristics
| For shaft diameter | 30 mm |
| Length | 50 mm |
| Load rating dynamic | 2 800 N |
| Outer diameter | 40 mm |
| Static load rating | 2 700 N |
| Material | Metal / Plastic |
| Surface | Blank |
Description
Linear bearings ISO Series 1 in high quality. With steel jacket. Ball cage from plastic. These linear bearings can be fitted inside a customer´s housing or as spare parts for our closed units ISO Series 1. With wiping double-lip seals. These bearings are self-aligning up to +/- 0,5°. All bearings must be lubricated before use. Recommended shaft tolerance h6, housing tolerance H6.
