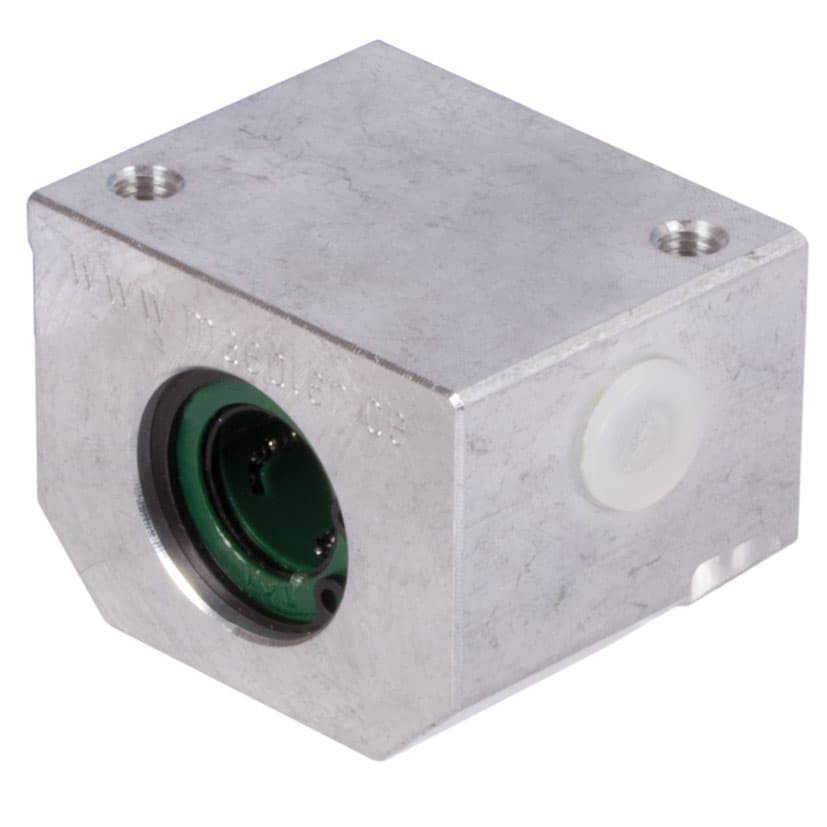

Linear bearing unit KG-3 ISO series 3 Easy-Line with self-aligning linear ball bearing with seals for shaft Ø 20mm
Manufacturer part no. 64672002
$121.35≈ 105.38 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €105.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.08 |
| Total delivered | €144.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

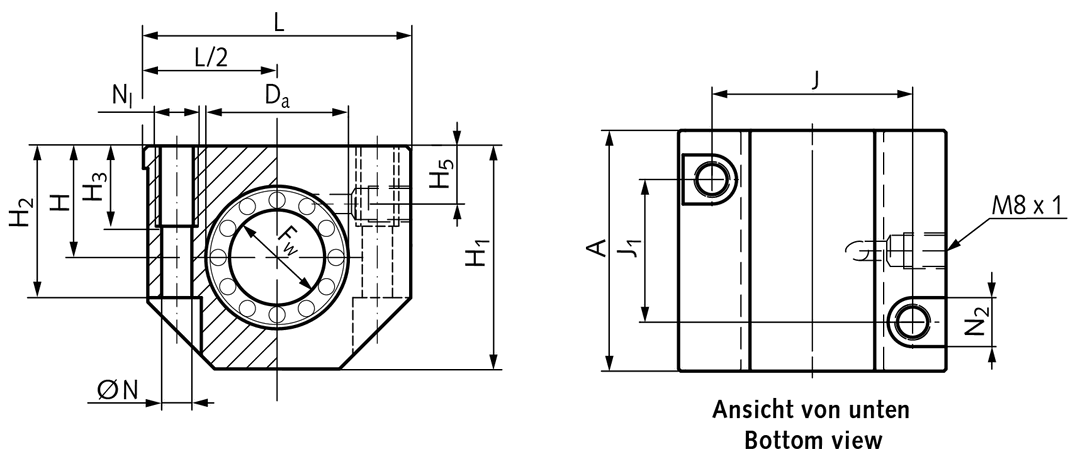

Specifications (automatically extracted)
Mechanical
| Weight | 330 g |
Other characteristics
| For shaft diameter | 20 mm |
| Height | 50 mm |
| Length | 54 mm |
| Load rating dynamic | 2 090 N |
| Static load rating | 2 630 N |
| Width | 60 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Material: Housing made from extruded aluminium with a closed linear bearing of the ISO Series 3 from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. Self-aligning capability that accommodates tilting. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
