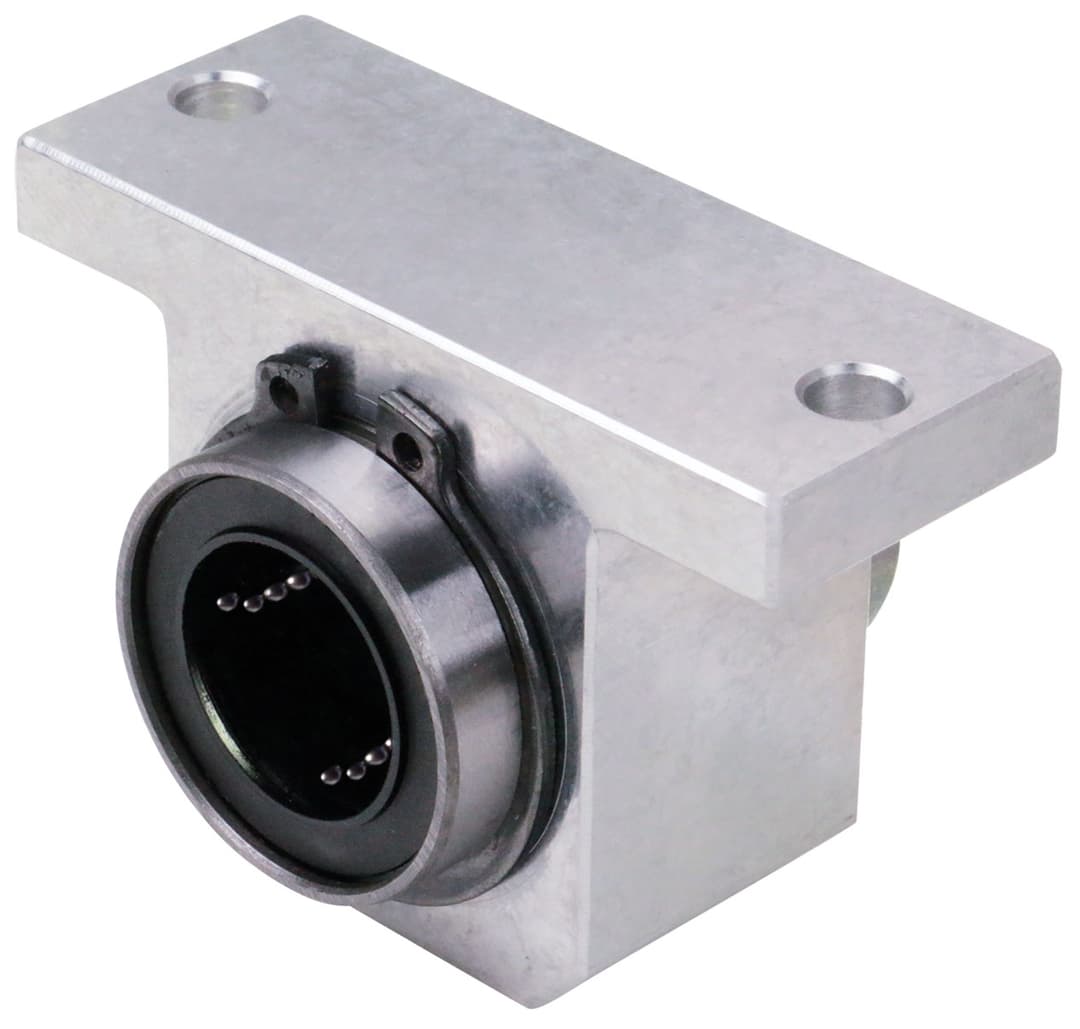

Linear bearing unit KG-3-KST ISO series 3 with linear ball bearing with steel jacket sealed on both sides for schaft Ø 20mm
Manufacturer part no. 64672004S
$52.69≈ 45.76 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €45.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.15 |
| Total delivered | €72.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

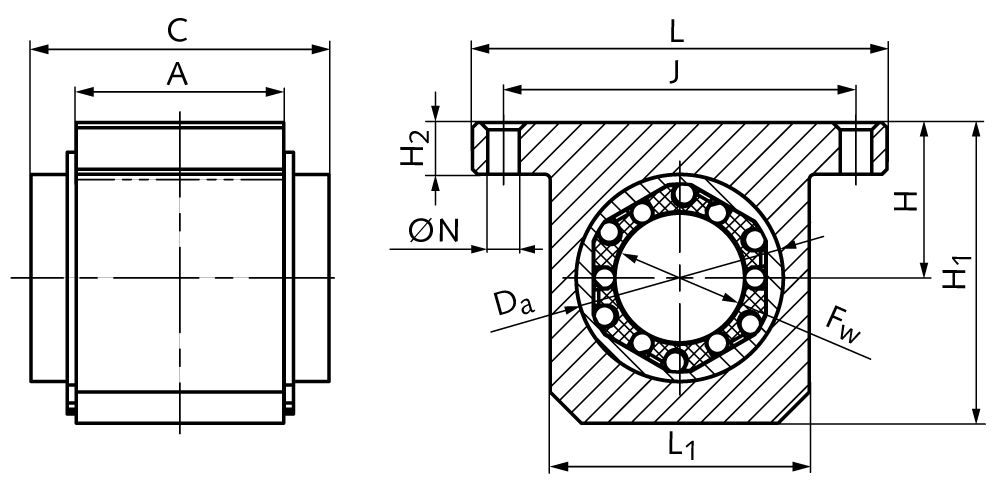

Specifications (automatically extracted)
Mechanical
| Weight | 190 g |
Other characteristics
| For shaft diameter | 20 mm |
| Height | 48 mm |
| Length | 45 mm |
| Load rating dynamic | 1 170 N |
| Static load rating | 1 400 N |
| Width | 70 mm |
| Material | Aluminum / Steel / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with a closed linear bearing of the ISO Series 3 with steel jacket and plastic cage. All bearings are sealed on both sides and lubricated ready-to-install. Recommended shaft tolerance h6.
