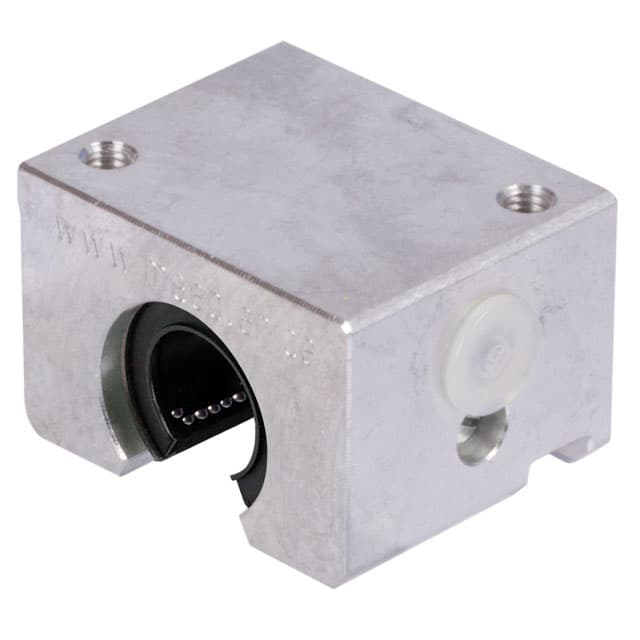

Linear bearing unit KG-3-STO ISO series 3 with linear ball bearing with steel jacket with seals for shaft Ø 25mm open design
Manufacturer part no. 64672503S
$142.59≈ 123.83 €
Price summary
Listed by MÄDLER at €123.83. Delivered to France, including shipping, VAT and any customs duty, it comes to about €166.60. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €123.83 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.77 |
| Total delivered | €166.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 710 g |
Other characteristics
| A | 67 mm |
| Da | 40 mm |
| E | 11.5 mm |
| Fw | 25 mm |
| H 0 02 | 30 mm |
| H1 | 51 mm |
| H2 | 40 mm |
| H3 | 22 mm |
| H5 | 15 mm |
| H6 | 31.5 mm |
| J | 60 mm |
| J1 | 40 mm |
| L | 78 mm |
| Load rating dyn c | 1 330 N |
| Load rating stat c0 | 1 600 N |
Description
Material: Housing made from extruded aluminium with an open linear bearing of the ISO Series 3, with steel jacket and plastic cage. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6. * When mounting from the bottom side choose the next smaller screw size.
