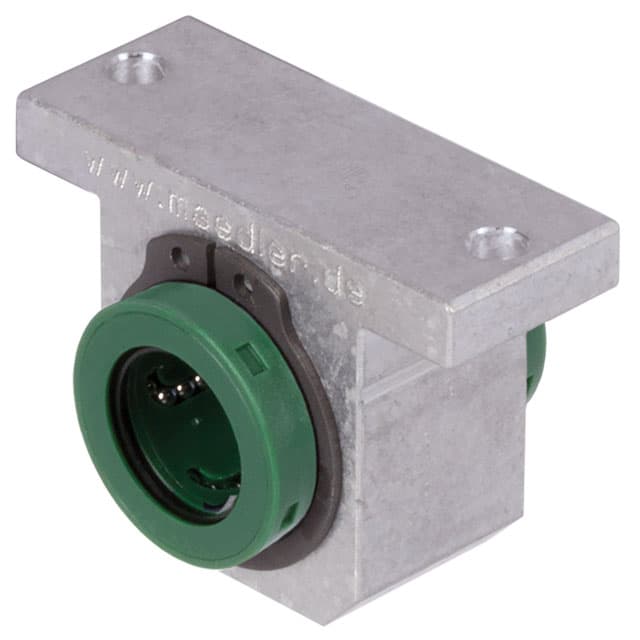

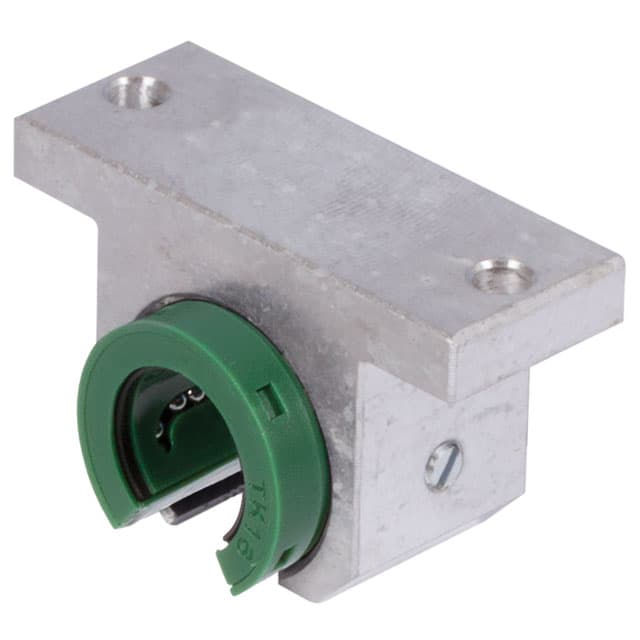

Linear bearing unit KG-3-KO ISO series 3 with Easy-Line linear ball bearing for schaft Ø 25mm open design
Manufacturer part no. 64672505E
$87.30≈ 75.81 €
Price summary
Listed by MÄDLER at €75.81. Delivered to France, including shipping, VAT and any customs duty, it comes to about €108.97. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €75.81 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.16 |
| Total delivered | €108.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 490 g |
Other characteristics
| A | 40 mm |
| C | 58 mm |
| Da | 40 mm |
| E | 13 mm |
| Fw | 25 mm |
| H 0 015 | 30 mm |
| H1 | 51 mm |
| H2 | 10 mm |
| J | 68 mm |
| L | 80 mm |
| L1 | 50 mm |
| Load rating dyn c | 3 780 N |
| Load rating stat c0 | 4 720 N |
| N | 6.4 mm |
Description
Material: Housing made from extruded aluminium with an open linear bearing of the ISO Series 3 from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. Self-aligning capability that accommodates tilting. With wiping seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
