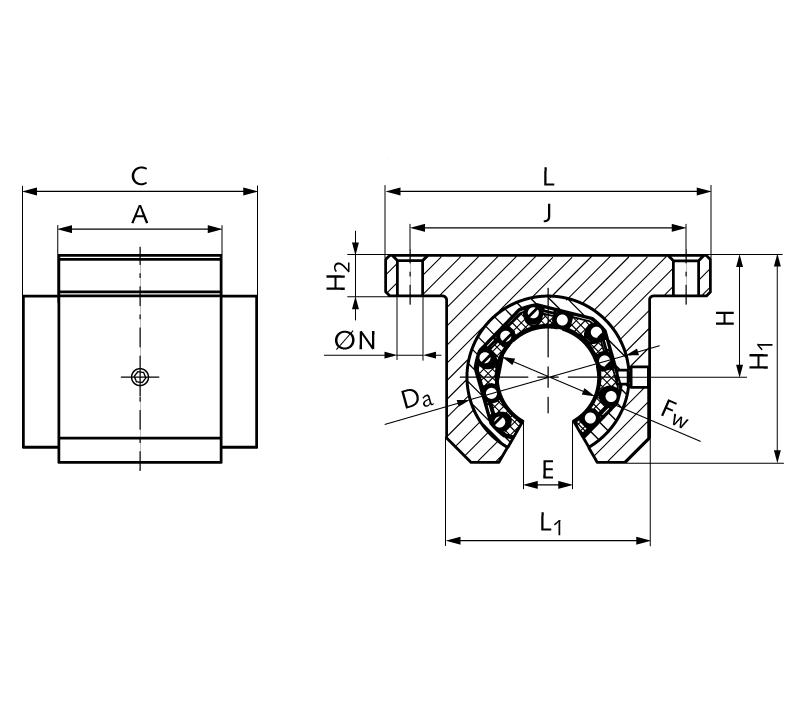

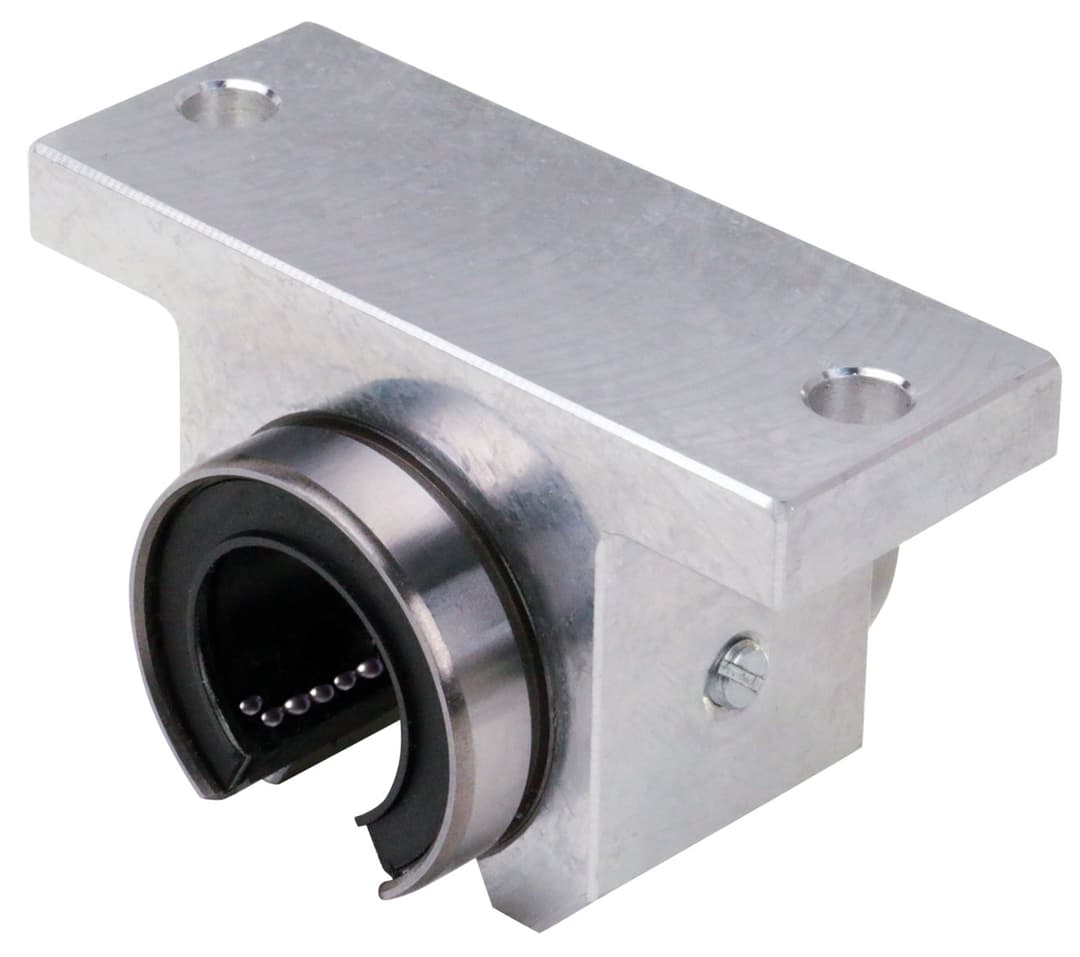

Linear bearing unit KG-3-KST-O ISO series 3 with linear ball bearing with steel jacket sealed on both sides for schaft Ø 25mm open design
Manufacturer part no. 64672505S
$79.20≈ 68.78 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €68.78 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.76 |
| Total delivered | €100.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 370 g |
Other characteristics
| For shaft diameter | 25 mm |
| Height | 51 mm |
| Length | 58 mm |
| Load rating dynamic | 1 330 N |
| Static load rating | 1 600 N |
| Width | 80 mm |
| Material | Aluminum / Steel / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with an open linear bearing of the ISO Series 3 with steel jacket and plastic cage. All bearings are sealed on both sides and lubricated ready-to-install. Recommended shaft tolerance h6.
