MÄDLERMÄDLER· Linear Motion, Linear Bearings, Precision Rail Guides

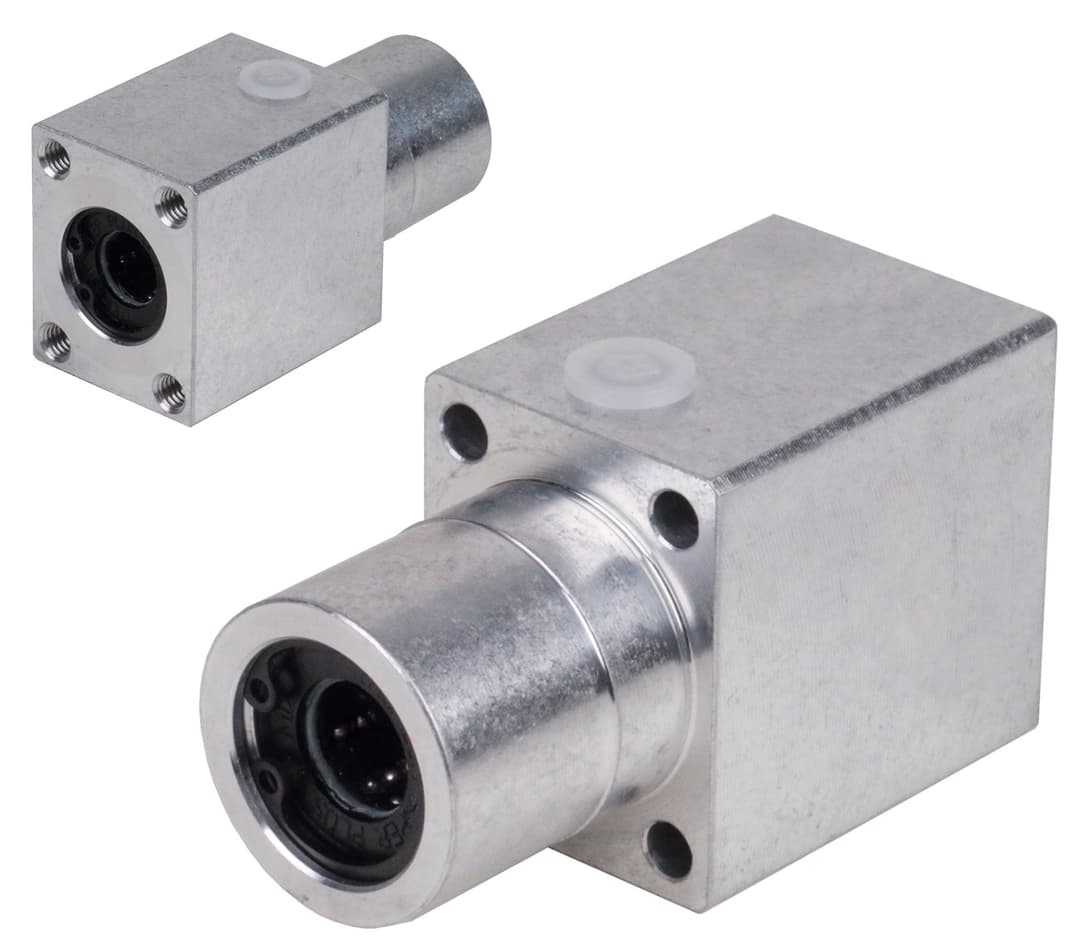

Linear bearing unit KG-3-FT ISO series 3 with self-aligning linear ball bearings with seals for shaft Ø 30mm
Manufacturer part no. 64673007
$268.32≈ 233.02 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €233.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €49.60 |
| Total delivered | €297.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11.5 kg |
Other characteristics
| For shaft diameter | 30 mm |
| Length | 152 mm |
| Load rating dynamic | 10 940 N |
| Static load rating | 13 620 N |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with two closed linear bearing of the ISO Series 3 from reliable brand in good quality. Self-aligning capability that accommodates tilting. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
