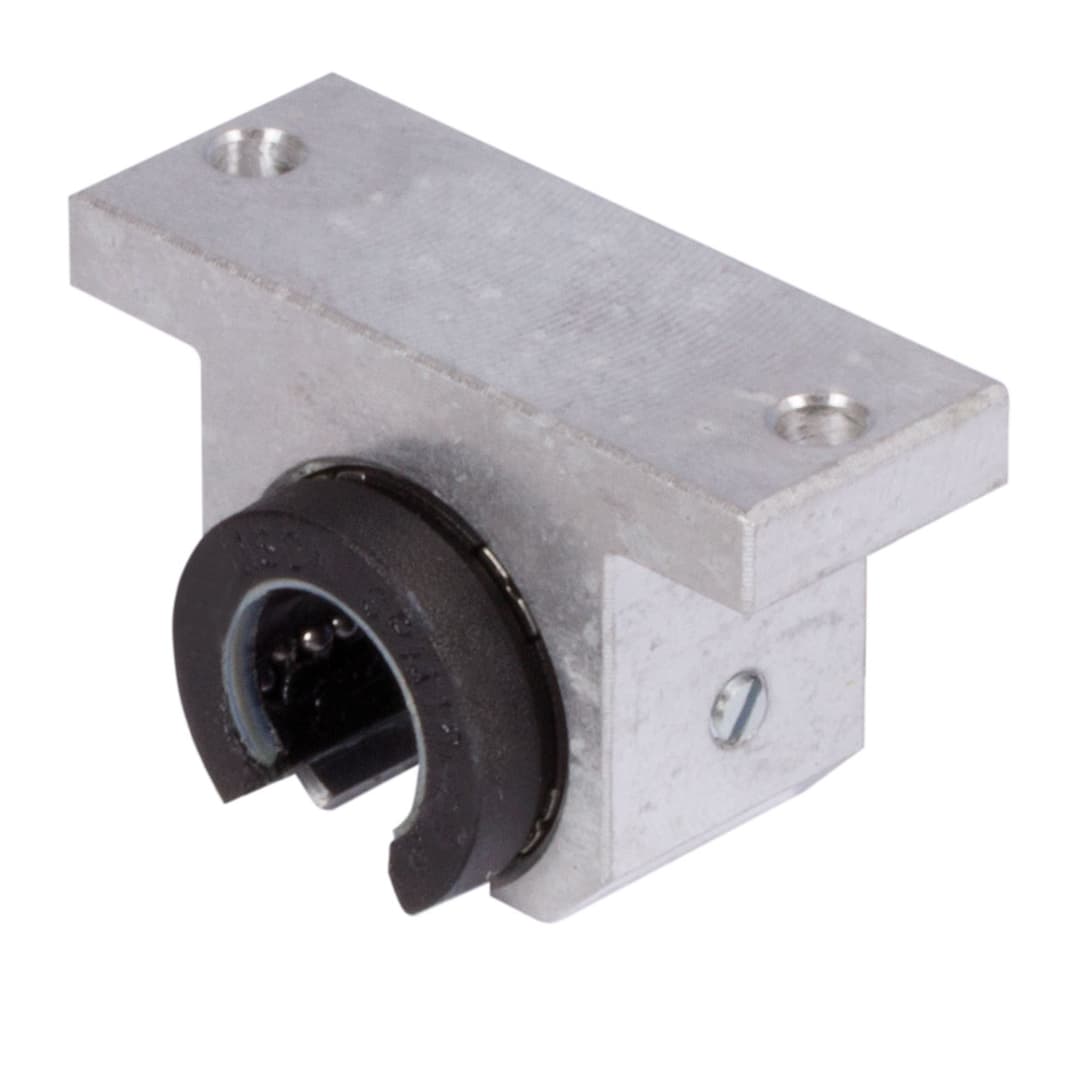

Linear bearing unit KG-3-KO ISO series 3 with self-aligning linear ball bearing with seals for shaft Ø 40mm open design
Manufacturer part no. 64674005
$168.55≈ 146.37 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €146.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €32.27 |
| Total delivered | €193.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.28 kg |
Other characteristics
| For shaft diameter | 40 mm |
| Height | 77 mm |
| Length | 80 mm |
| Load rating dynamic | 6 590 N |
| Static load rating | 8 230 N |
| Width | 108 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with an open linear bearing of the ISO Series 3 from reliable brand in good quality. Self-aligning capability that accommodates tilting. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
