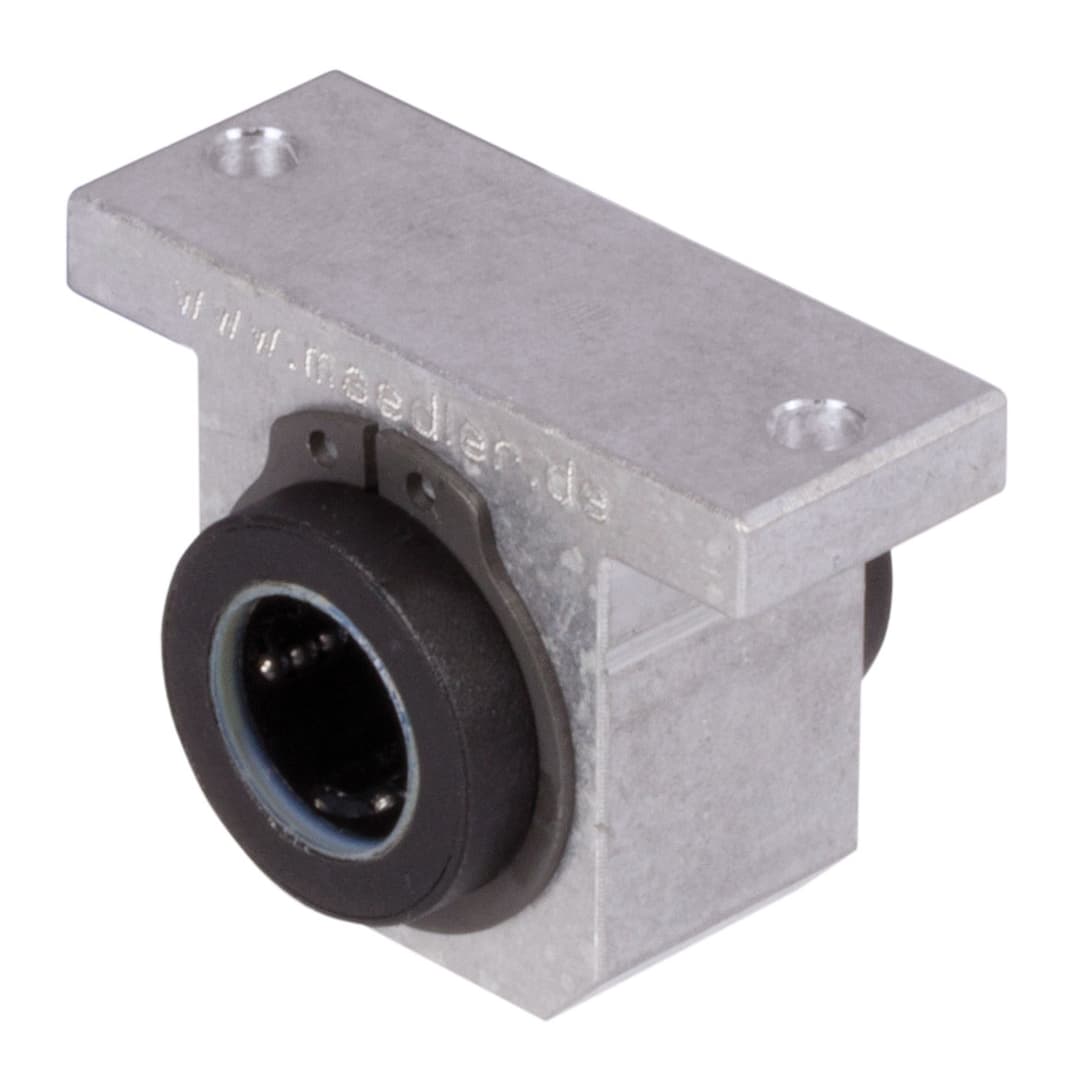

Linear bearing unit KG-3-K ISO series 3 with self-aligning linear ball bearing with seals for shaft Ø 50mm
Manufacturer part no. 64675004
$237.91≈ 206.61 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €206.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €44.32 |
| Total delivered | €265.93 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.7 kg |
Other characteristics
| For shaft diameter | 50 mm |
| Height | 100 mm |
| Length | 100 mm |
| Load rating dynamic | 10 800 N |
| Static load rating | 13 500 N |
| Width | 135 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with a closed linear bearing of the ISO Series 3 from reliable brand in good quality. Self-aligning capability that accommodates tilting. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
