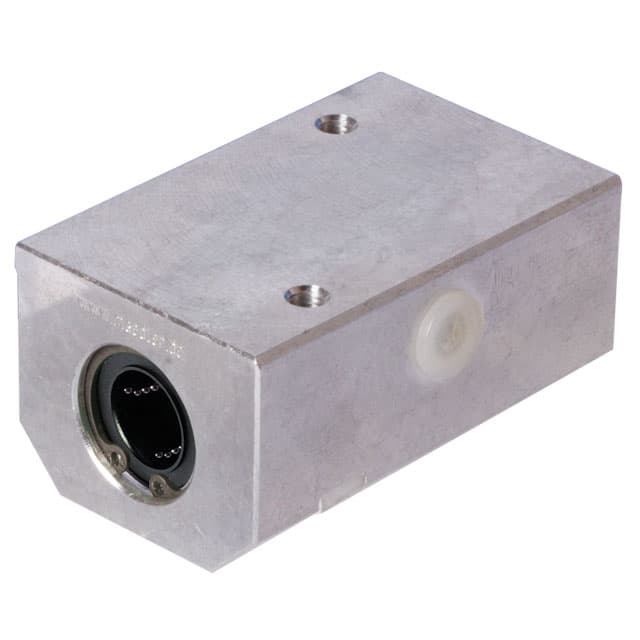

Tandem linear bearing unit KGT-3-ST ISO series 3 with linear ball bearings with steel jacket with seals for shaft Ø 30mm
Manufacturer part no. 64683002S
$257.80≈ 223.88 €
Price summary
Listed by MÄDLER at €223.88. Delivered to France, including shipping, VAT and any customs duty, it comes to about €286.66. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €223.88 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €47.78 |
| Total delivered | €286.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.35 kg |
Other characteristics
| A | 152 mm |
| Da | 47 mm |
| Fw | 30 mm |
| H 0 02 | 35 mm |
| H1 | 70 mm |
| H2 | 48 mm |
| H3 | 26 mm |
| H5 | 16 mm |
| J | 62 mm |
| J1 | 85 mm |
| L | 87 mm |
| Load rating dyn c | 3 456 N |
| Load rating stat c0 | 4 564 N |
| N | 10.3 mm |
| N2 | 18 mm |
Description
Material: Housing made from extruded aluminium with two closed linear bearings of the ISO Series 3, with steel jacket and plastic cage. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6. * When mounting from the bottom side choose the next smaller screw size.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERIn stock

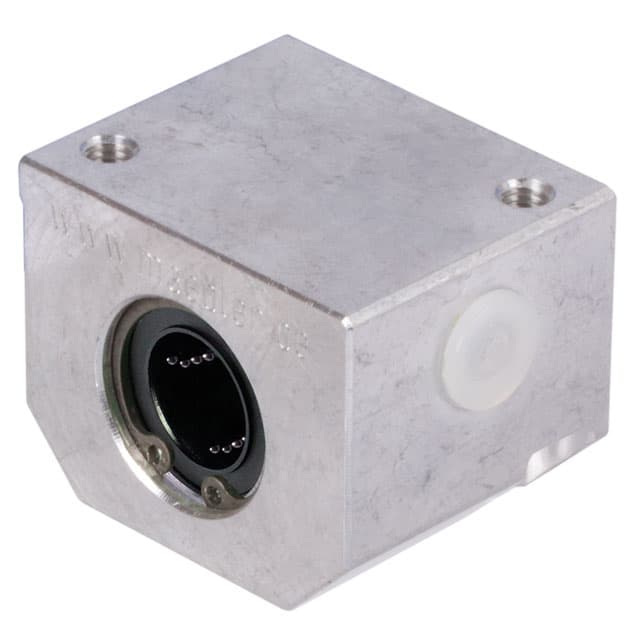

Linear bearing unit KG-3-KST ISO series 3 with linear ball bearing with steel jacket sealed on both sides for schaft Ø 30mm
€78.78$90.72
View at seller ↗
MÄDLERBackorder
Linear bearing unit KG-3-ST ISO series 3 with linear ball bearing with steel jacket with seals for shaft Ø 12mm
€65.11$74.97
View at seller ↗Similar products
MÄDLERBackorder
Tandem linear bearing unit KGT-3-ST ISO series 3 with linear ball bearings with steel jacket with seals for shaft Ø 20mm
€165.31$190.35
View at seller ↗
MÄDLERBackorder

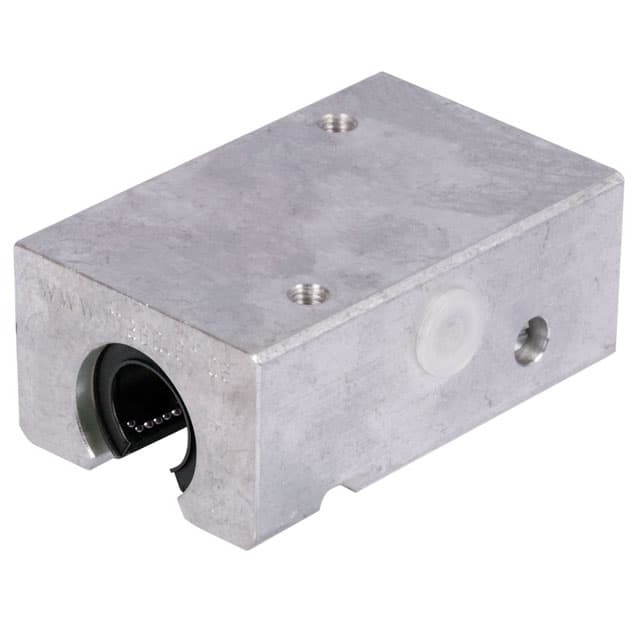

Tandem linear bearing unit KGT-3-STO ISO series 3 with linear ball bearings with steel jacket with seals for shaft Ø 30mm open design
