Manufacturer part no. 64699025
Listed by MÄDLER at €114.49. Delivered to France, including shipping, VAT and any customs duty, it comes to about €155.39. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €114.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.90 |
| Total delivered | €155.39 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 108 g |
| For shaft diameter | 25 mm |
| Length | 58 mm |
| Load rating dynamic | 4 550 N |
| No of ball rows | 6 |
| Outer diameter | 40 mm |
| Static load rating | 3 800 N |
| Material | Plastic / Stainless steel |
| Surface | Blank |

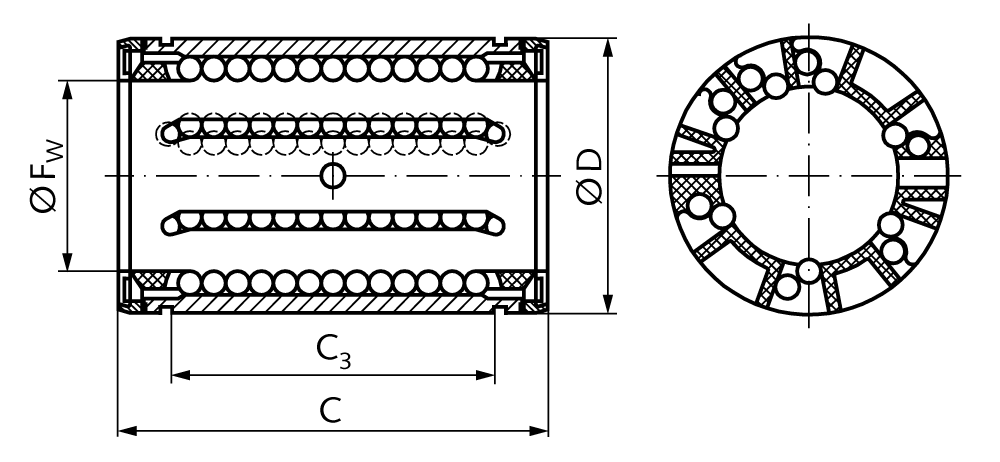

Stainless KB-3 linear bearings series 3 of ISO 10285 from premium brand in top quality. High load-bearing capacity, due to the asymmetric position of the rows of balls and the specially shaped raceway segments. These linear bearings can be fitted inside a closed or open housing and are thus adjustable. With shields. Bearings with FW 5mm must be lubricated before use. All other bearings are lubricated ready-to-install. Recommended shaft tolerance h6, housing tolerance H6.
