MÄDLERMÄDLER· Mechanics & transmission

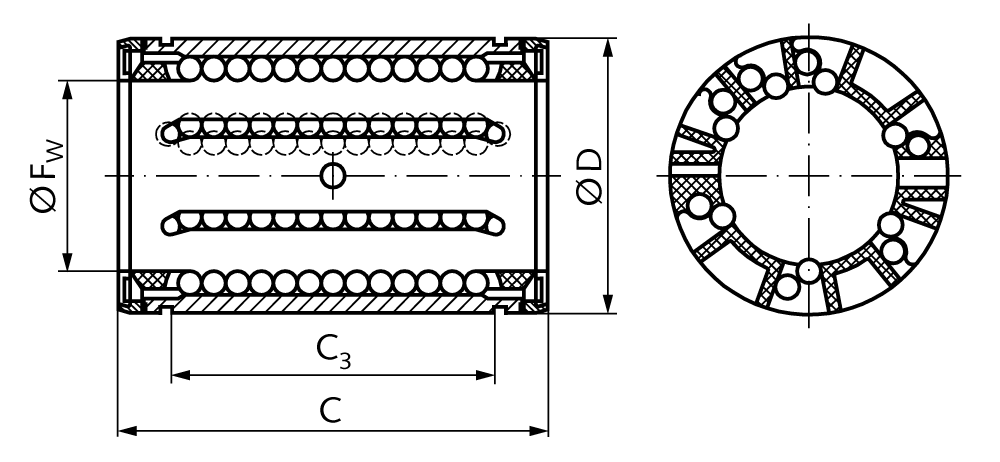

Linear ball bearing KB-3 ISO series 3 premium stainless with seals for shaft Ø 30mm
Manufacturer part no. 64699130
$143.70≈ 124.37 €
Price summary
Listed by MÄDLER at €124.37. Delivered to France, including shipping, VAT and any customs duty, it comes to about €167.24. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €124.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.87 |
| Total delivered | €167.24 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 122 g |
Other characteristics
| For shaft diameter | 30 mm |
| Length | 68 mm |
| Load rating dynamic | 7 100 N |
| No of ball rows | 6 |
| Outer diameter | 47 mm |
| Static load rating | 5 700 N |
| Material | Plastic / Stainless steel |
| Surface | Blank |
Description
Stainless KB-3 linear bearings series 3 of ISO 10285 from premium brand in top quality. High load-bearing capacity, due to the asymmetric position of the rows of balls and the specially shaped raceway segments. These linear bearings can be fitted inside a closed or open housing and are thus adjustable. With wiping double-lip seals. Bearings with FW 5mm must be lubricated before use. All other bearings are lubricated ready-to-install. Recommended shaft tolerance h6, housing tolerance H6.
