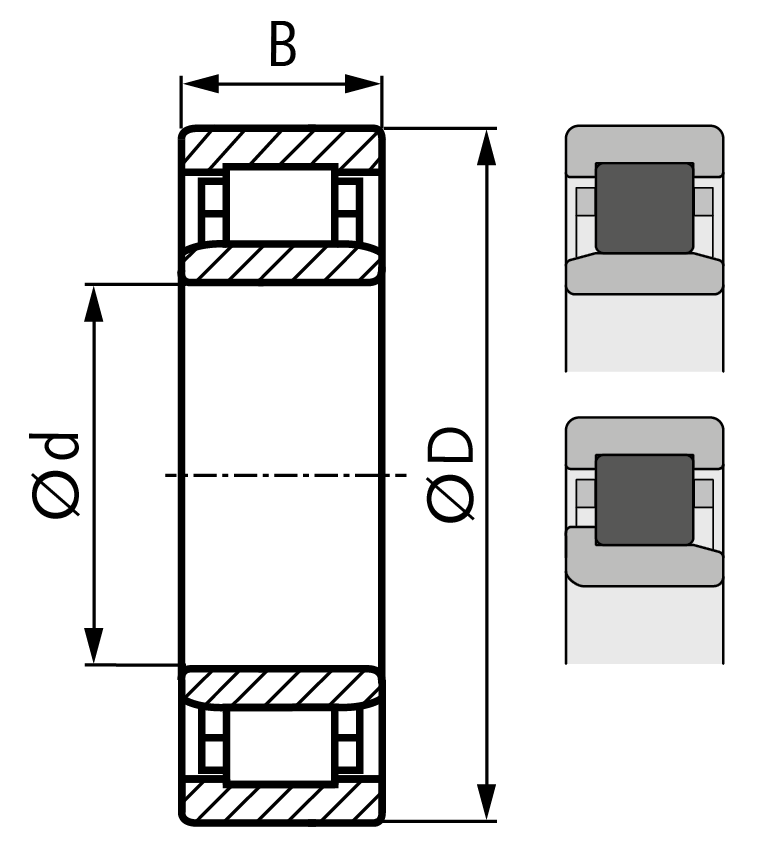

SKF cylindrical roller bearing NJ 203 ECP single row inner diameter 17mm outer diameter 40mm width 12mm
Manufacturer part no. 64775004
$78.06≈ 67.79 €
Price summary
Listed by MÄDLER at €67.79. Delivered to France, including shipping, VAT and any customs duty, it comes to about €99.35. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €67.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.56 |
| Total delivered | €99.35 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |
Other characteristics
| Inner diameter | 17 mm |
| Load rating dynamic | 17.2 kN |
| Outer diameter | 40 mm |
| Static load rating | 14.3 kN |
| Width | 12 mm |
| Displacement direction | One sided |
| Material | Roller bearing steel |
| Skf type | NJ 203 ECP |
| Speed limit | 22000 min-1 |
| Surface | Blank |
Description
Material: Bearing steel. Cylindrical roller bearings in premium-quality. – For high radial load. – Displaceable in both directions (type NU) or in one direction (Type NJ). – Usable for high speed, with groove and 3 lubribation holes. – Easy to mount (the inner ring is loose). Temperature range: -30°C to +90°C (for short time up to +110°C). Other versions or other bearing types on request.
