MÄDLERMÄDLER· Bearings, Bushes, Seals

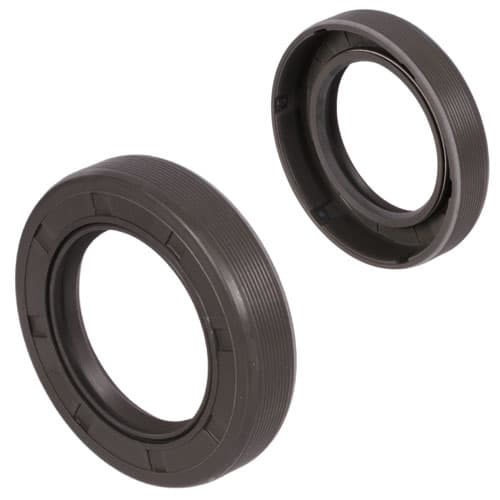

Radial shaft seal type A with one sealing lip 25 x 52 x 7mm
Manufacturer part no. 64790132
$6.80≈ 5.91 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €5.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.18 |
| Total delivered | €25.09 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 18.4 g |

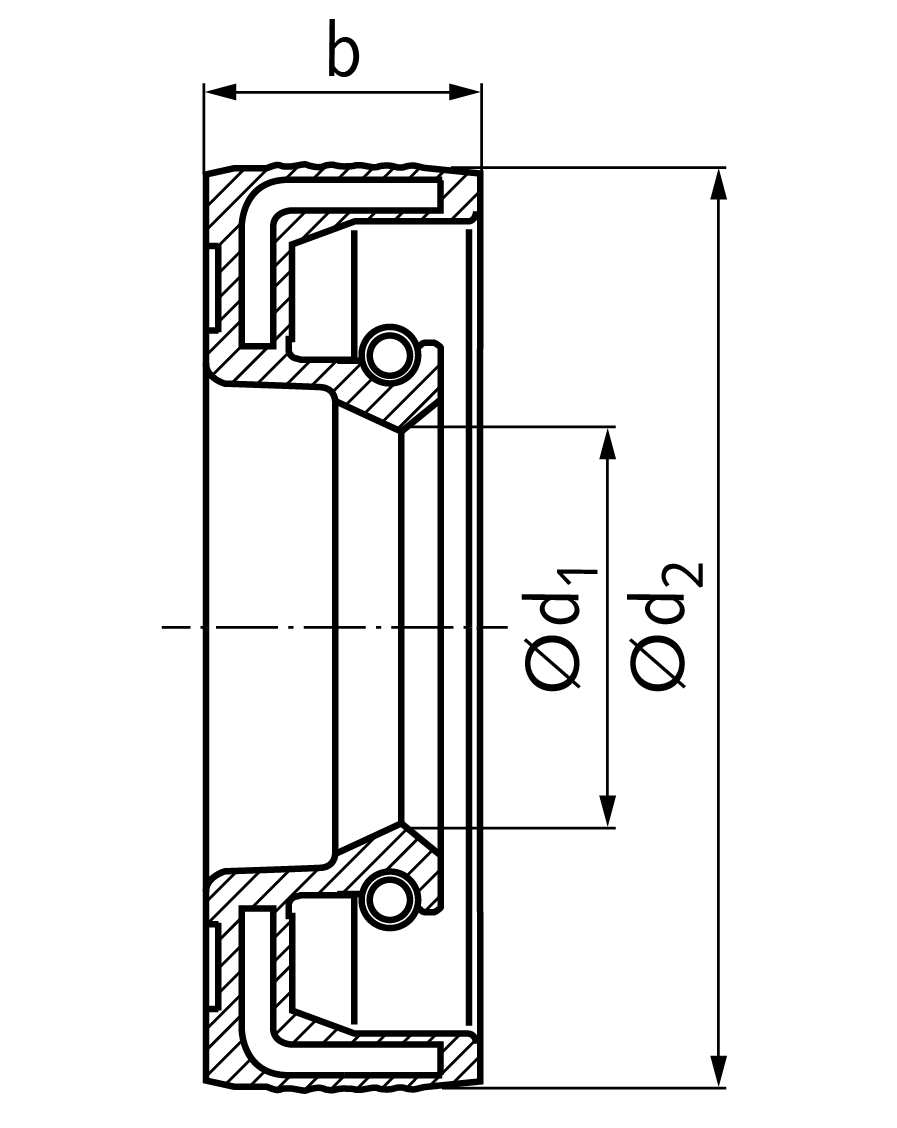

| Dimensions | 25x52x7mm |
Other characteristics
| Inner diameter | 25 mm |
| Outer diameter | 52 mm |
| Width | 7 mm |
| Material | NBR / Steel |
| Surface | Blank |
Description
Material: Elastomer: NBR. Stiffening ring and tension spring from steel. • According to DIN 3760 Design A respectively ISO 6194-1 figure 1 and in many additional sizes. • Most common design, with one seal lip. • For oil- and grease-lubricated applications. • For high speed, sliding speed up to 14m/s. Recommended tolerances: Housing bore H8, shaft-Ø h11, Shaft roughness Ra 0.2 to 0.8 μm. Temperatur range: -40°C to +100°C (for short time up to +120°C).
