Toothed shaft DIN 5480 25 x 1,25 x 18 length 500mm material C45 milled
Manufacturer part no. 64812500
$466.85≈ 405.43 €
Price summary
Listed by MÄDLER at €405.43. Delivered to France, including shipping, VAT and any customs duty, it comes to about €504.52. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €405.43 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €84.09 |
| Total delivered | €504.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.9 kg |
Other characteristics
| No of teeths | 18 |
| Material | Steel (1045) |
| Profile | W 25 x 1.25 x 18 mm |
| Surface | Blank |
Description
Material: steel C45, milled. Toothed shafts with profile DIN 5480, toothed on the complete length. For shaft-to-hub connection, for torque transmission and centering. Sliding fit with our corresponding hubs and flanged hubs DIN 5480. Module 1.25. Pressure angle 30°. Tolerance 8f.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERIn stock

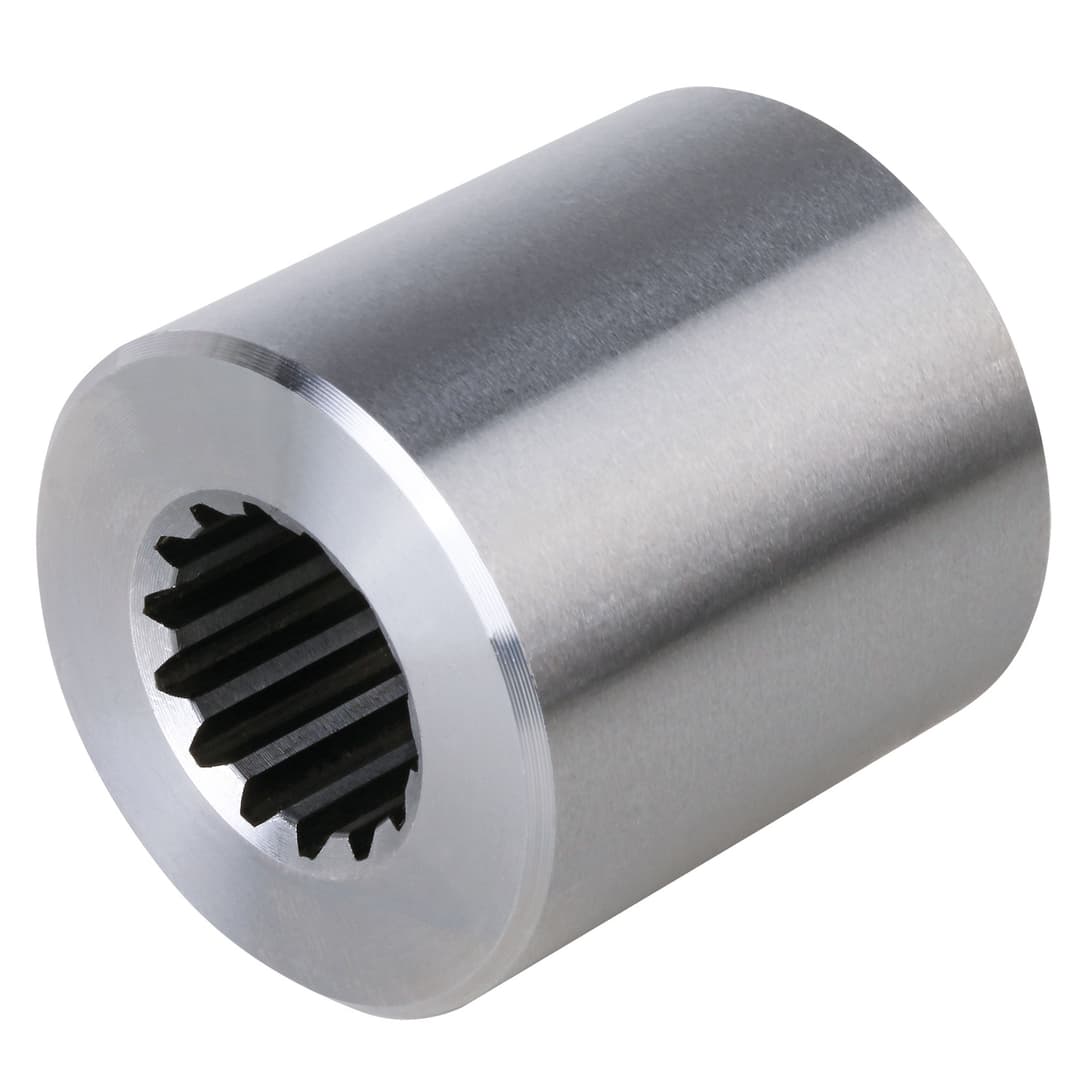

Splined hub DIN ISO 14 KN 18×22 length 50mm diameter 40mm steel C45Pb
