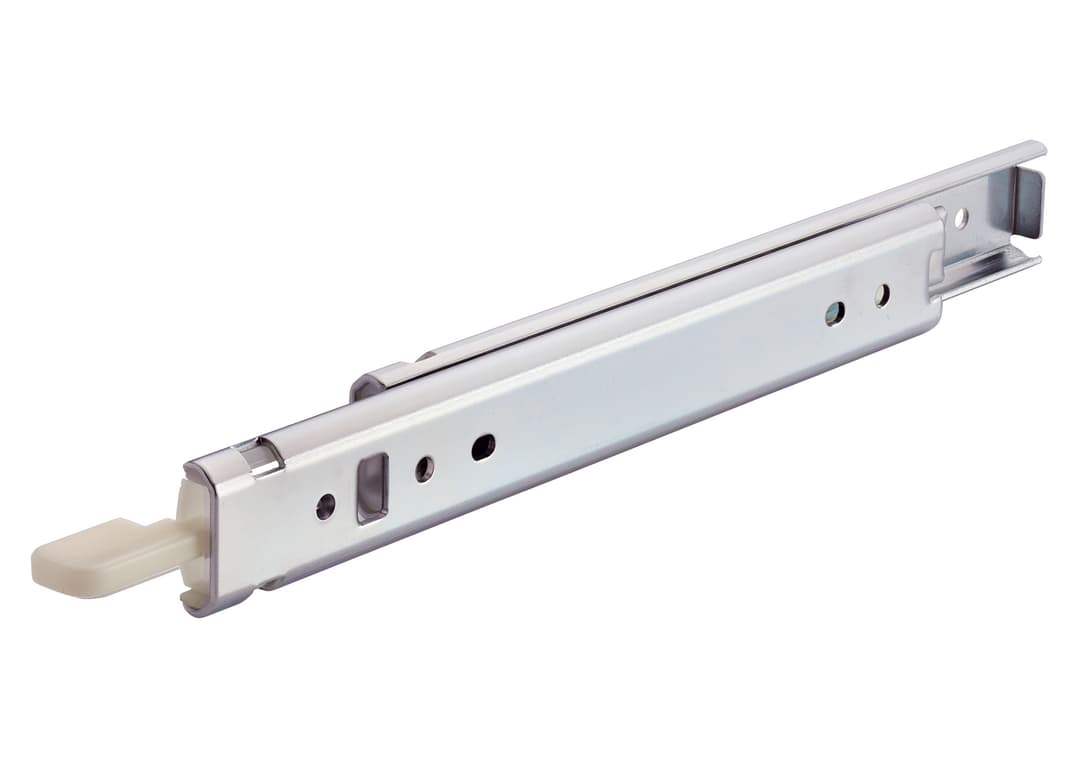

Slide set DZ 2731 CL slide length 350mm zinc plated
Manufacturer part no. 64900535
$78.33≈ 68.02 €
Price summary
Listed by MÄDLER at €68.02. Delivered to France, including shipping, VAT and any customs duty, it comes to about €99.62. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €68.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.60 |
| Total delivered | €99.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 28 kg |
| Rail length | 350 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 354 mm |
| Weight pair | 1.05 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | Yes |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 2731 CL |
Description
Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). Low profile: 27mm high. Lock-in in closed position. Front lever lock release. Slide is unhanded. Service life 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4/M3 screw. Use all mounting positions to achieve the max. load ratings.
