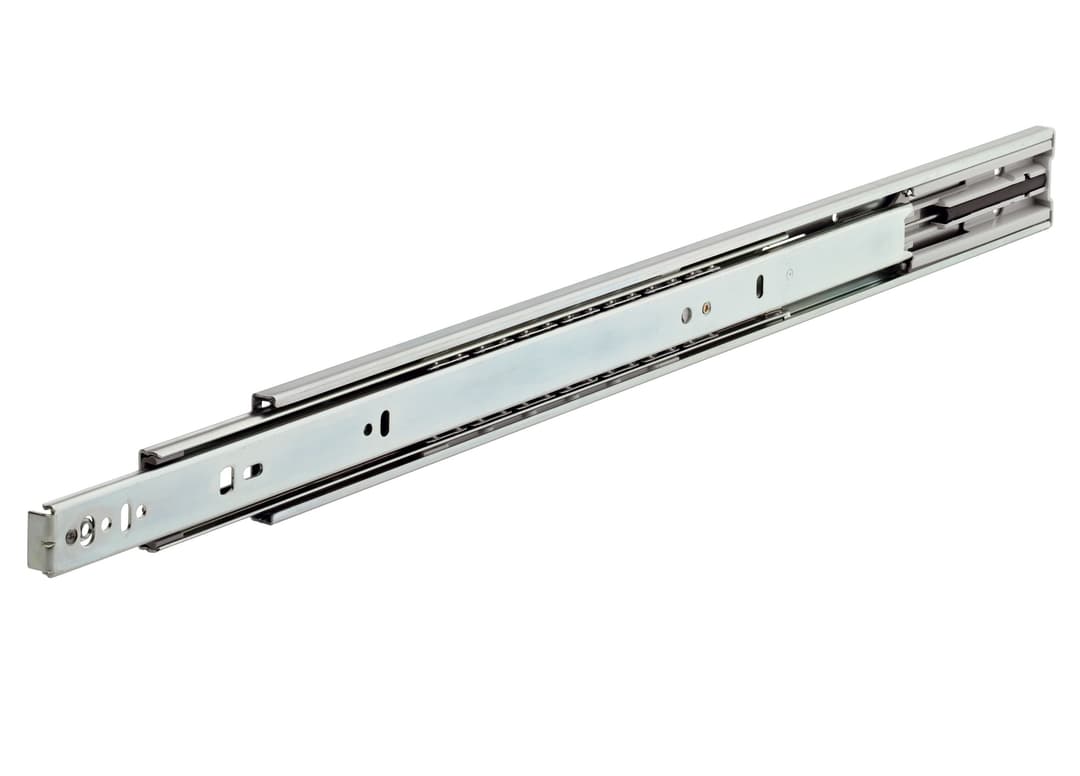

Slide set DZ 3832 EC-B slide length 600mm zinc plated
Manufacturer part no. 64901560
$56.60≈ 49.15 €
Price summary
Listed by MÄDLER at €49.15. Delivered to France, including shipping, VAT and any customs duty, it comes to about €76.98. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €49.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.83 |
| Total delivered | €76.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 45 kg |
| Rail length | 600 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 610 mm |
| Weight pair | 1.77 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | Yes |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | Yes |
| Surface | Zinc-plated (bright) |
| Typ | DZ 3832 EC-B |
Description
Material: Slide elements: Cold rolled steel, zinc plated or coated. Ball retainers: Plastic / zinc plated steel. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Fast disconnection. Hold-in in the closed position. Can be mounted on both sides. Cam drawer adjust (3.1 mm). Service life 80,000 cycles. Temperature range: -10°C to +40°C. Note: Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings. Horizontal mounting is not recommended.
