Slide set DZ 2720 Slide length 450mm zinc plated
Manufacturer part no. 64901945
$43.66≈ 37.79 €
Price summary
Listed by MÄDLER at €37.79. Delivered to France, including shipping, VAT and any customs duty, it comes to about €63.35. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €37.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.56 |
| Total delivered | €63.35 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

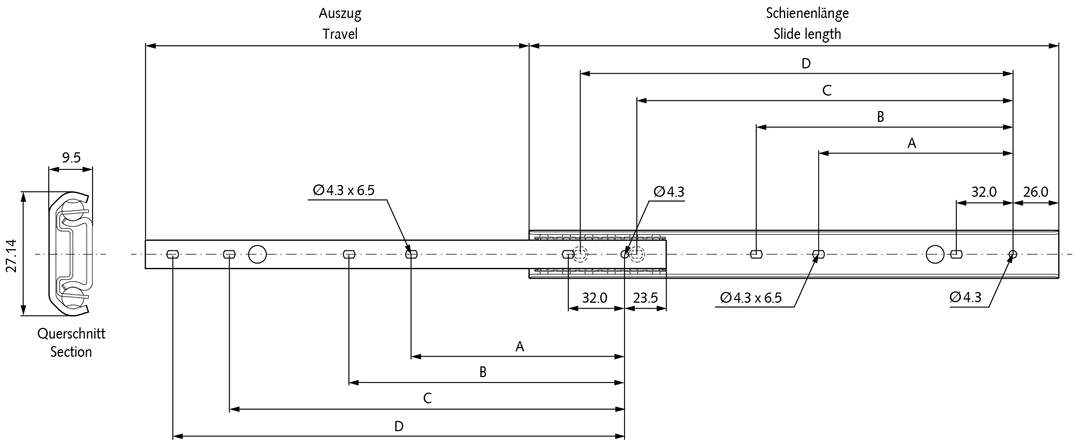

Other characteristics
| A | 192 mm |
| B | 224 mm |
| C | 352 mm |
| D | 384 mm |
| Extension 3 2 | 331.7 mm |
| Load value pair | 20 kg |
| Rail length | 450 mm |
| Weight pair | 0.66 kg |
Description
Material: Slide elements: Cold-rolled steel, bright zinc-plated. Ball retainers: Cold-rolled steel, zinc-plated. Balls: Hardened steel. Telescopic ball bearing slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). • Compact profile. • Low height. • Service life 80,000 cycles. • Temperature range: -20°C to +70°C. Note: Recommended fastening: M4 screw. Max. head. height 2,5mm/Ø9,6mm. Use all mounting positions to achieve the max. load rating.
