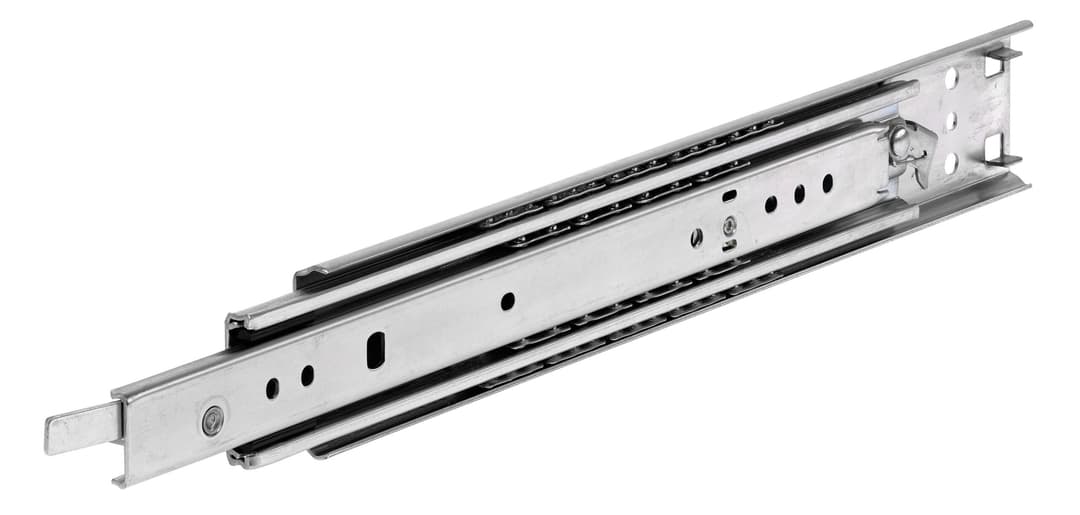

Slide set DZ 3308 slide length 356mm zinc plated
Manufacturer part no. 64903214
$230.47≈ 200.15 €
Price summary
Listed by MÄDLER at €200.15. Delivered to France, including shipping, VAT and any customs duty, it comes to about €258.18. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €200.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €43.03 |
| Total delivered | €258.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 67 kg |
| Rail length | 356 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 381 mm |
| Weight pair | 1.54 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | Yes |
| Locking | Yes |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 3308 |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Cold rolled steel, zinc plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Lock-in in closed position. Lock-out in open position. Service life 10,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings. Ordering details: e.g.: Product no. 649 032 12, Slides 3308
