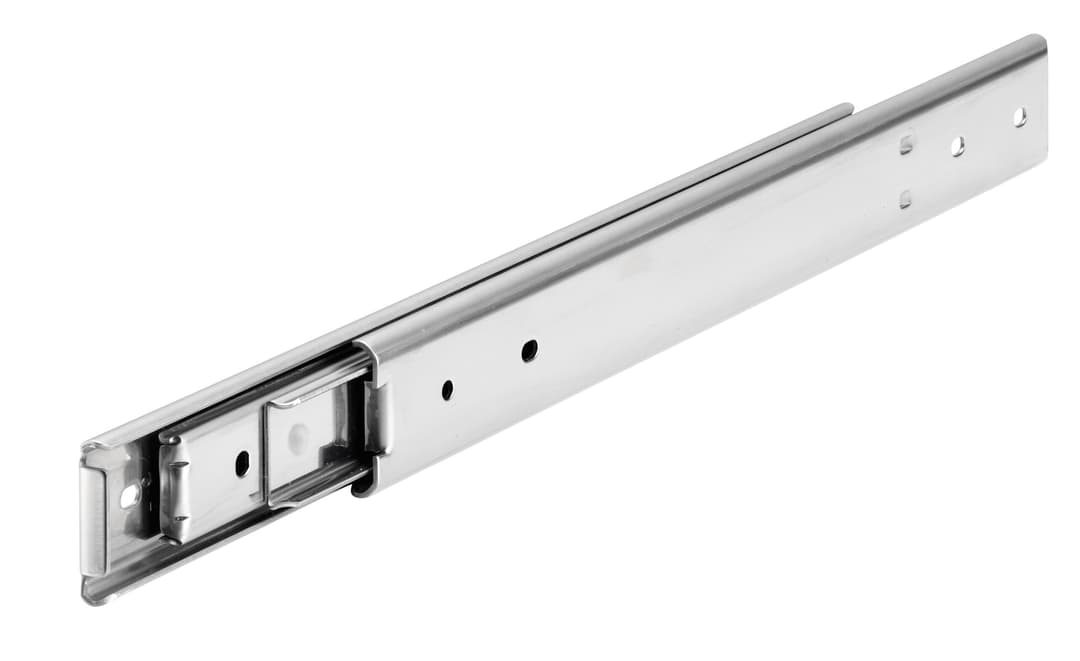

Slide set DS 3031 slide length 350mm stainless steel
Manufacturer part no. 64903535
$227.65≈ 197.03 €
Price summary
Listed by MÄDLER at €197.03. Delivered to France, including shipping, VAT and any customs duty, it comes to about €254.44. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €197.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €42.41 |
| Total delivered | €254.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 70 kg |
| Rail length | 350 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 367 mm |
| Weight pair | 1.72 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Stainless steel (304) |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Blank |
| Typ | DS 3031 |
Description
Material: Stainless steel 1.4301 (AISI 304). Telescopic ball bearing slides for applications in the industrial sector. Sold by pair (1 x product no. = 1 pair of slides). High temperatur food-grade grease. Suitable for temperature up to +300°C. Ideal for environments where mild steel might corrode. Service life 10,000 cycles. Temperature range: -20°C to +300°C.
