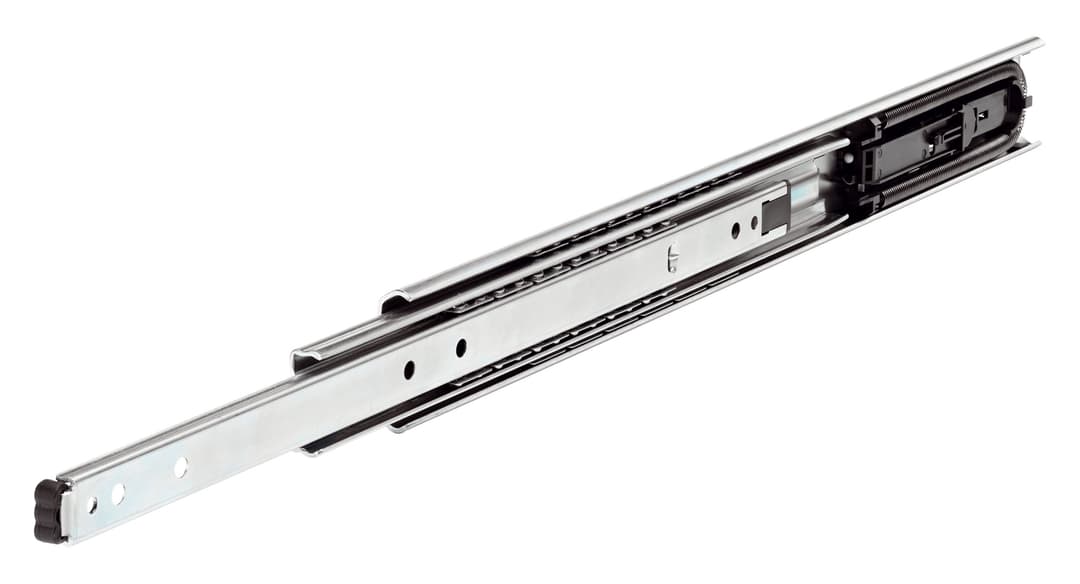

Slide set DZ 5321 EC slide length 1100mm zinc plated
Manufacturer part no. 64903711
$365.86≈ 316.65 €
Price summary
Listed by MÄDLER at €316.65. Delivered to France, including shipping, VAT and any customs duty, it comes to about €397.98. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €316.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €66.33 |
| Total delivered | €397.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Rail length | 1 100 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 1 100 mm |
| Weight pair | 6.18 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Load rating pair | 75 / 60* kg |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | No |
| Self closure | Yes |
| Surface | Zinc-plated (bright) |
| Typ | DZ 5321 EC |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Cold rolled steel, zinc plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Self-close. Suitable for drawers up to 1000mm wide at high load. Service life 80,000 cycles. Temperature range: -10°C to +40°C. Opening force 26N +/-5N. * at drawer width 450mm / 1000mm.
