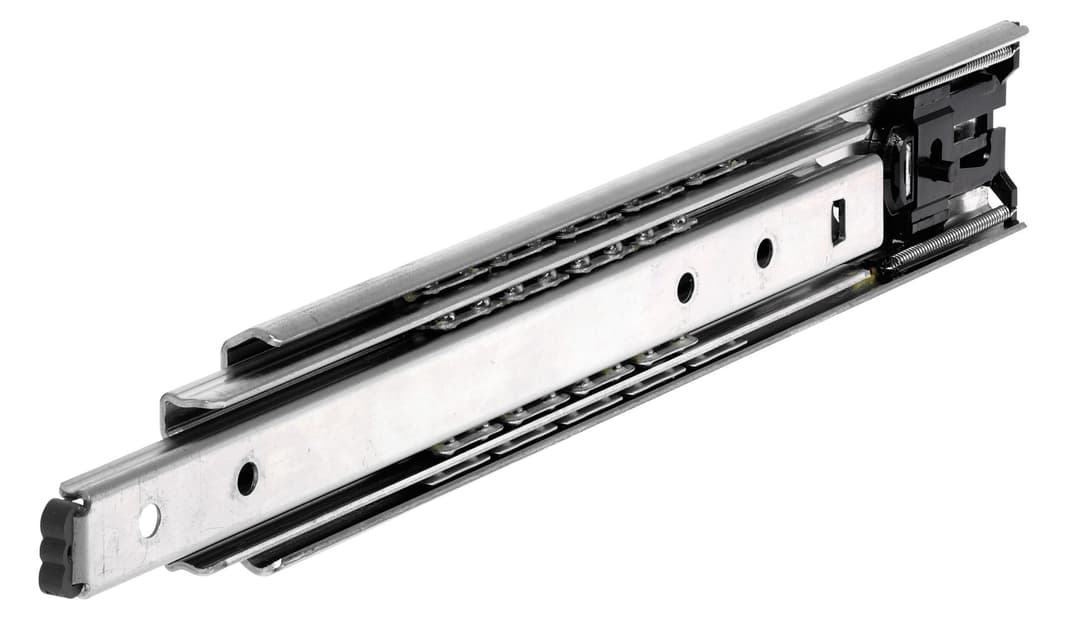

Slide set DZ 5321 SC slide length 790mm zinc plated
Manufacturer part no. 64904280
$227.61≈ 197.00 €
Price summary
Listed by MÄDLER at €197.00. Delivered to France, including shipping, VAT and any customs duty, it comes to about €254.40. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €197.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €42.40 |
| Total delivered | €254.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 50 kg |
| Rail length | 790 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 823 mm |
| Weight pair | 4.64 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | Yes |
| Surface | Zinc-plated (bright) |
| Typ | DZ 5321 SC |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Cold rolled steel, zinc plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Self-close. Hold-in in closed position. Bracket Mount for electrical cabinets on request. Service life 10,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M5 countersunk / 6mm countersunk Euro screw. Use all mounting positions to achieve the max. load rating. Ordering details: e.g.: Product no. 649 042 30, Slides 5321 SC
