Slide set DZ 3932 Slide length 400mm zinc plated
Manufacturer part no. 64904340
$89.72≈ 77.65 €
Price summary
Listed by MÄDLER at €77.65. Delivered to France, including shipping, VAT and any customs duty, it comes to about €111.18. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €77.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.53 |
| Total delivered | €111.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

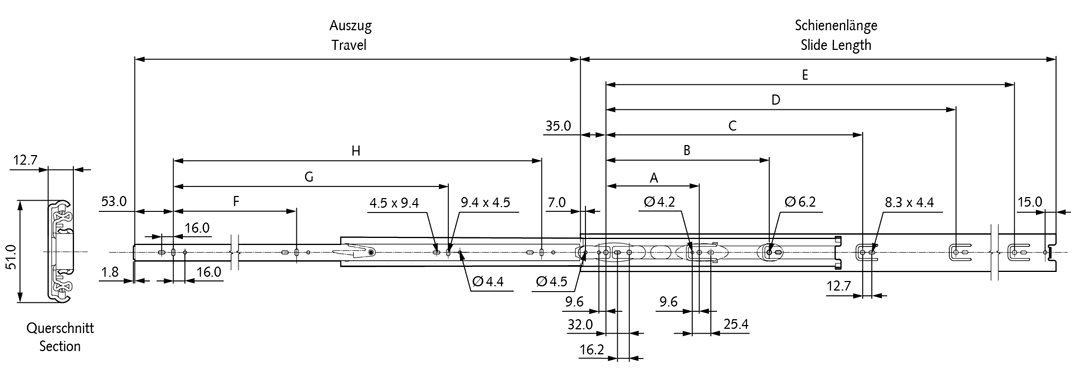

Specifications (automatically extracted)
Other characteristics
| A | 128 mm |
| B | 192 mm |
| C | 320 mm |
| Extension 3 2 | 400 mm |
| F | 128 mm |
| G | 288 mm |
| Load value pair | 68 kg |
| Rail length | 400 mm |
| Weight pair | 1.76 kg |
| D | – |
| E | – |
| H | – |
Description
Material: Slide elements: Cold rolled steel, bright zinc-plated. Ball retainers: Plastic / zinc-plated steel. Balls: Hardened steel. Telescopic precision ball bearing slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). • Fast Disconnect. • Hold-in in the closed position. • Service life 50,000 cycles. • Temperature range: -20°C to +70°C. Note: Recommended mount: M4 screw/6mm Euro screw/4mm wood screw. Max. head. height 2,5mm/Ø9,6mm. Use all mounting positions to achieve the max. load rating. Attention: Vertical (side) mounting only.
