Slide set DZ 3932 EC Slide length 300mm zinc plated
Manufacturer part no. 64904430
$103.58≈ 89.95 €
Price summary
Listed by MÄDLER at €89.95. Delivered to France, including shipping, VAT and any customs duty, it comes to about €125.94. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €89.95 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.99 |
| Total delivered | €125.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

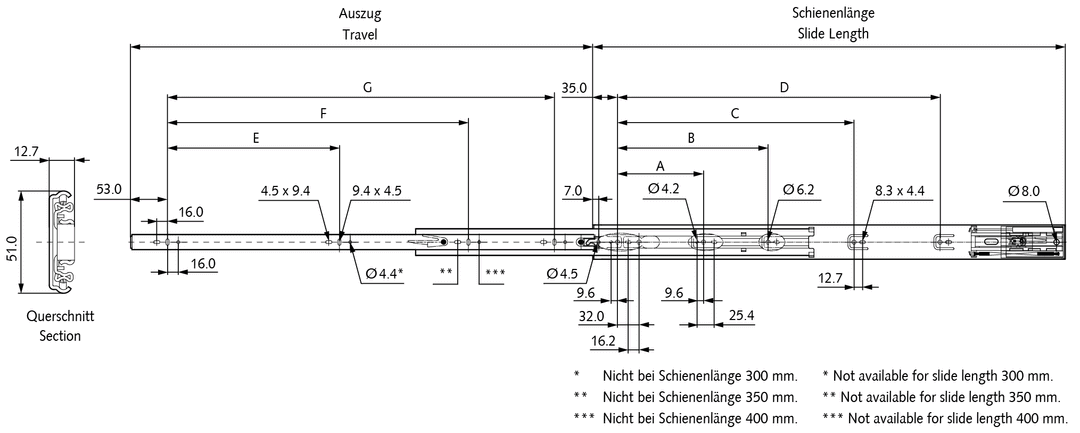

Specifications (automatically extracted)
Other characteristics
| B | 96 mm |
| E | 192 mm |
| Extension 3 2 | 275 mm |
| Load value pair | 35 kg |
| Rail length | 300 mm |
| Weight pair | 1.18 kg |
| A | – |
| C | – |
| D | – |
| F | – |
| G | – |
Description
Material: Slide elements: Cold-rolled steel, bright zinc-plated. Ball retainers: Plastic / zinc-plated steel. Balls: Hardened steel. Telescopic ball bearing slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). • Self Close. • Fast disconnection. • Hold-in in closed position. • Service life 50,000 cycles. • Temperature range: -10°C to +40°C. Note: Recommended mount: M4 screw/6mm Euro screw/4mm wood screw. Max. head. height 2,5mm/Ø9,6mm. Use all mounting positions to achieve the max. load rating. Attention: Vertical (side) mounting only. The load capacity was tested at a slide spacing of 450mm. For optimal performance, the construct drawer width must be 27 mm less than the cabinet opening width. * Not available for slide length 300 mm. ** Not available for slide length 350 mm. *** Not available for slide length 400 mm.
